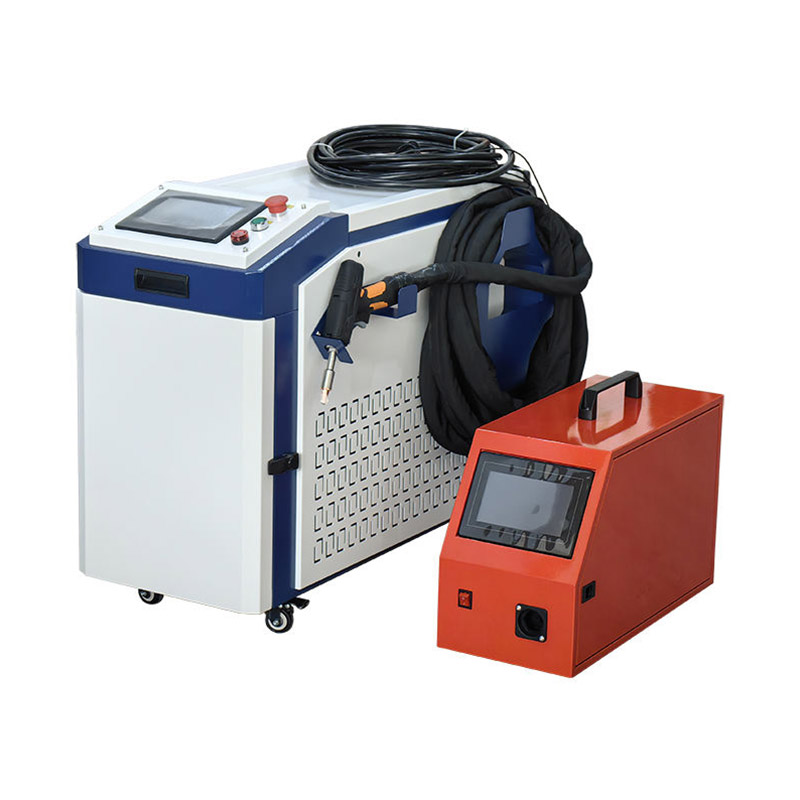

1500w laser welding machine (water-cooled)

1、 Product Overview

The 1500 watt water-cooled laser welding machine is a flagship equipment designed for general industrial welding scenarios. Based on the core technology of the 1200W laser welding machines, it achieves a power jump and a stable rated output power of 1500 watts. It integrates the new generation of fiber laser technology with an enhanced water-cooled cooling system, combining high power output and high-precision control. Compared with traditional welding equipment and low-power laser welding machines, it has core advantages such as wider welding thickness, faster speed, better weld quality, and smaller thermal deformation. It can easily meet the complex welding needs of various metal materials such as stainless steel, carbon steel, aluminum alloy, galvanized sheet, iron, etc. Handheld laser welding machines are widely used in industries such as automobile manufacturing, mechanical parts, hardware processing, advertising decoration, sheet metal processing, medical equipment, aerospace, etc. It is the core equipment for enterprises to improve production efficiency, break through difficult welding bottlenecks, and create high-end products.

2、 Core performance parameters

Laser power: rated output of 1500 watts, adjustable power range of 10% -100%, suitable for welding of stainless steel, carbon steel, galvanized sheet, aluminum, iron and other materials with different thicknesses of 0.5-4mm, achieving high-quality forming.

Wavelength: 1064nm fiber laser, with high beam quality and an energy concentration 20% higher than the 1200 watt model, ensuring precision welding and deep penetration welding requirements.

Welding speed: 0-150mm/s, 4-6 times faster than traditional argon arc welding, significantly reducing batch production cycles and lowering unit product manufacturing costs.

Water cooling system: Upgraded closed-loop enhanced water cooling and heat dissipation system, with precise temperature control between 10-40 ℃ and high heat dissipation efficiency. It can support 24-hour continuous operation and avoid equipment overheating problems under high power.

Power requirements: AC 220V ± 10%, 50/60Hz, power consumption ≤ 7kW.

Welding joint strength: The tensile strength of the weld seam is ≥ 95% of the strength of the base material, and the weld seam is uniformly and smoothly formed without defects such as pores, cracks, splashes, etc., and does not require subsequent polishing treatment.

3、 Product advantages and after-sales support

Performance advantages: ① Power upgrade: Compared with the 1200 watt model, the welding thickness is increased by 25%, the speed is increased by 15%, and it can cover more welding scenarios; ② Higher accuracy: smaller light spot, more precise power control, suitable for the dual needs of precision welding and medium thin plate welding; ③ Strong stability: The strengthened water cooling system supports 24-hour continuous operation, with longer lifespan of core components and a 40% reduction in failure rate; ④ Cost optimization: The improvement of welding efficiency brings about a reduction in the unit labor cost of the product, eliminating the need for subsequent processing of the weld seam and reducing the cost of the polishing process, resulting in low consumables consumption; ⑤ High flexibility: multi-mode welding, suitable for complex workpieces and diversified welding needs; ⑥ Energy saving and convenient: intelligent energy-saving design+simple operation interface, reducing energy consumption and labor training costs.

4、After sales guarantee:

Provide a 1-year warranty for the entire machine and free online technical support. Professional after-sales team responds quickly 24 hours a day; Free online operation training is provided to ensure that operators are proficient in equipment use and maintenance skills.

We can provide air-cooled laser welding machines with power levels of 800W, 1200W, 1500W, etc., as well as water-cooled handheld fiber laser welding machines with different laser powers of 1200W, 1500W, 2000W, 3000W, and 6000W. If you happen to need laser welding equipments, please contact us to obtain the latest factory prices for our products. We look forward to sincere cooperation with you.
