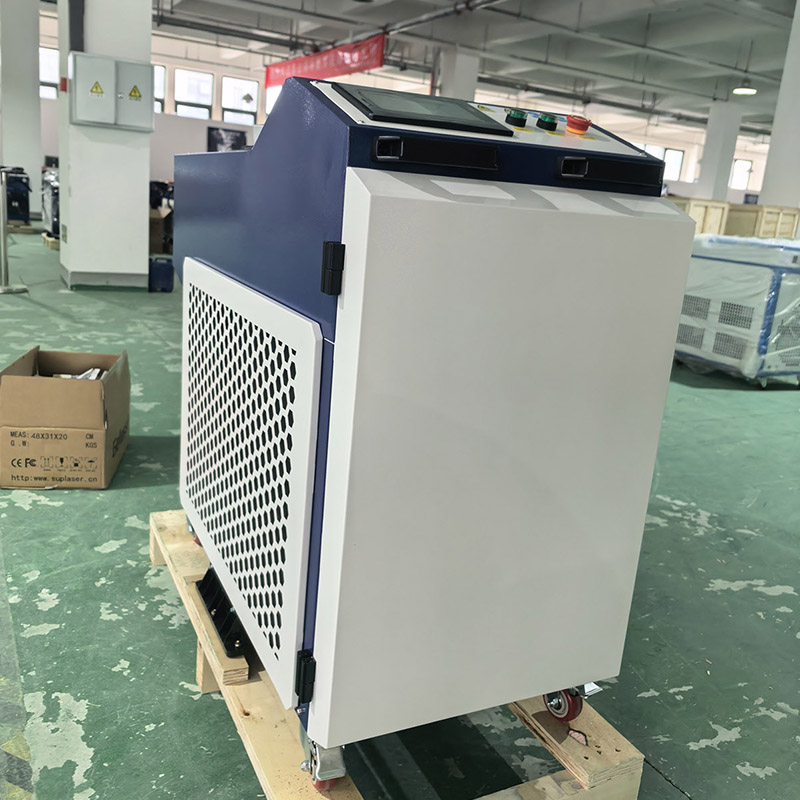

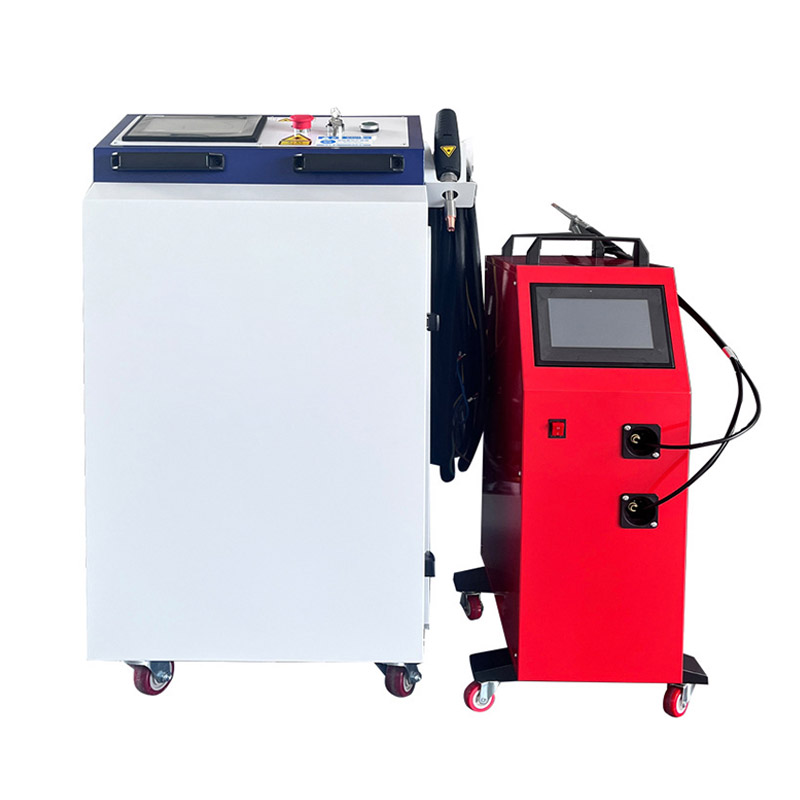

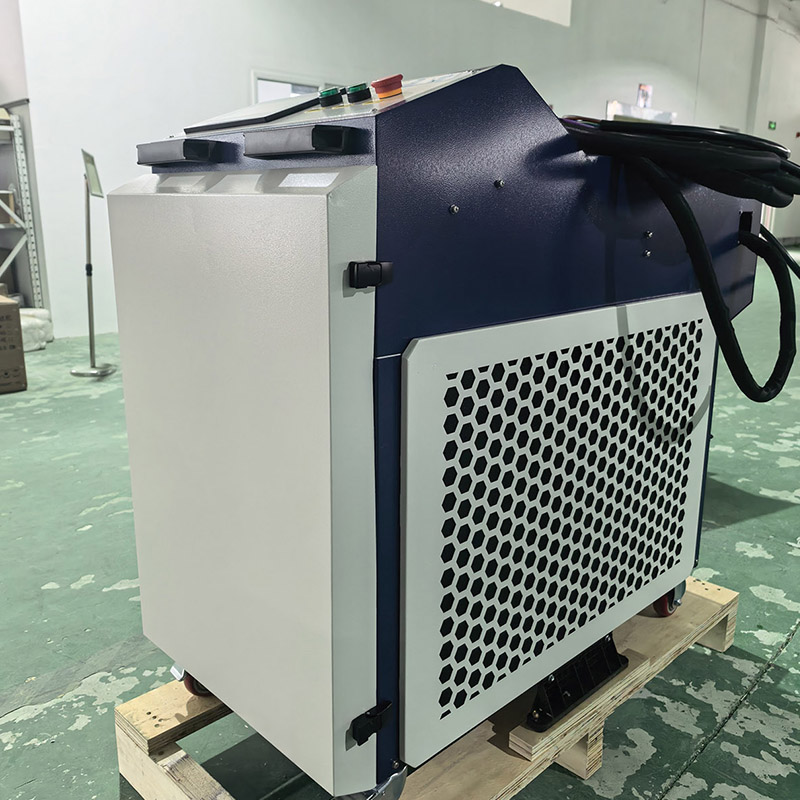

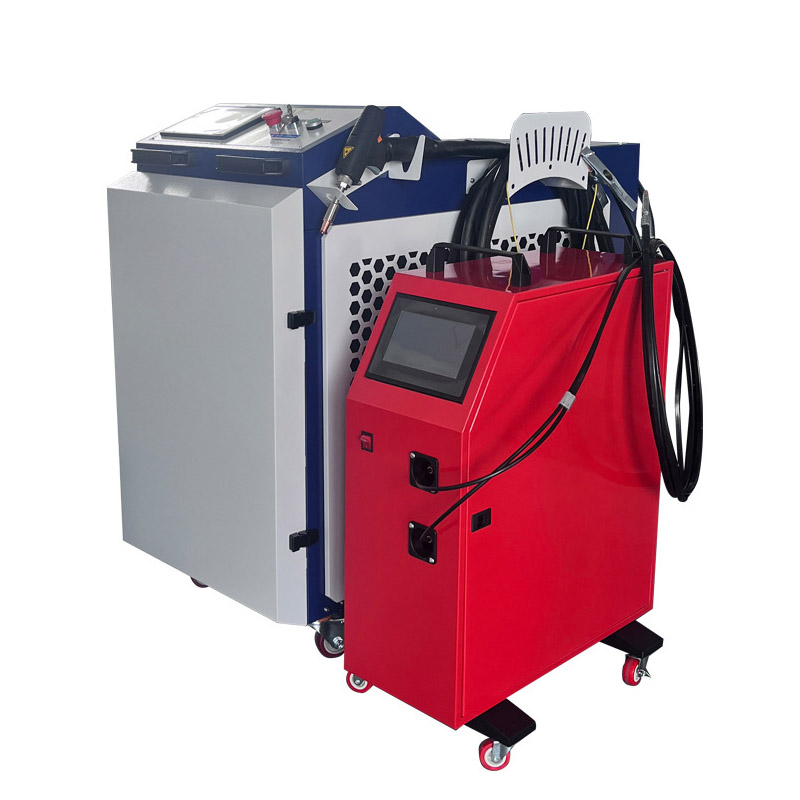

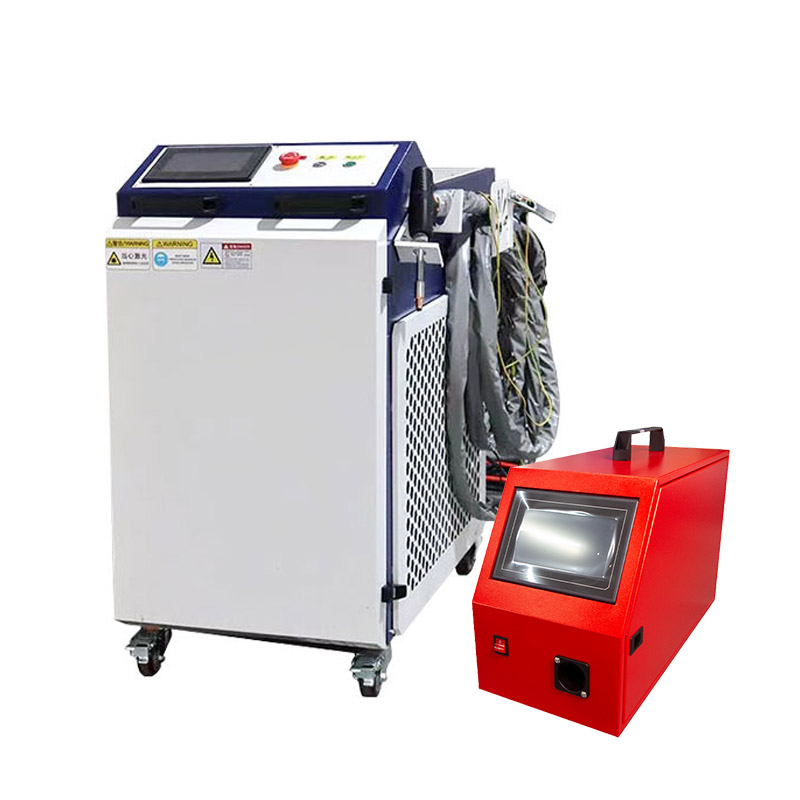

3000W fiber laser welding machine

3000W water-cooled laser welding machine

1、Product Overview

The 3000w fiber laser welding machine is a top of the line intelligent equipment designed for mid to high end industrial manufacturing and medium thick plate welding scenarios. Based on the flagship 2000 watt model technology, it has achieved a power doubling upgrade, with a stable rated output power of up to 3000 watts. It integrates cutting-edge laser core technology with industrial grade water-cooled cooling systems, combining advanced fusion capabilities, ultimate welding efficiency, and 24-hour stable operation characteristics. Compared to the 2000W fiber laser welding machine, its welding thickness continues to break through, reaching 8mm thickness, with stronger adaptability to complex working conditions; Compared with traditional high-power welding equipment, its weld accuracy, heat affected zone control, and intelligence level have achieved significant leaps, making it easy to meet the welding needs of medium and thick plates of various metal materials such as stainless steel, carbon steel, aluminum alloy, brass, etc. It is widely used in industries such as engineering machinery, steel structures, shipbuilding, aerospace, and new energy that require high welding quality and efficiency.

2、 Core performance parameters

Laser power: rated output of 3000 watts, adjustable power range of 10% -100%, suitable for welding requirements of 0.6-8mm medium thick plate stainless steel, carbon steel, galvanized plate, aluminum, copper, iron and other metal materials, can achieve high-quality forming, and the welding thickness is increased by more than 33% compared to the 2000W fiber laser welding machine.

Wavelength: 1064nm fiber laser, with further improved beam quality, smaller focused spot diameter, 15% increase in energy concentration compared to the 2000 watt model, and further enhancement of deep penetration welding penetration.

Welding speed: 0~215mm/s, 8-10 times faster than traditional argon arc welding.

Water cooling system: Industrial grade closed-loop water cooling and heat dissipation system, using industrial grade plate heat exchangers and dual independent circulation circuit design, with high heat dissipation power, precise control of working temperature between 10-40 ℃, and a 50% increase in heat dissipation efficiency compared to 2000 watt models. It supports 24-hour continuous operation and is suitable for the needs of industrial continuous production.

Power requirements: 380V ± 5%, 50/60Hz, power consumption ≤ 15kW.

Welding joint strength: The tensile strength of the weld seam is ≥ 99% of the strength of the base material, and the weld seam is uniformly and densely formed without defects such as pores, cracks, splashes, etc., meeting the strict requirements of high-end equipment for the appearance and performance of the weld seam.

3、Product advantages

Performance advantages: ① Peak power: 3000 watts of ultra-high power output, with significantly improved welding thickness and speed compared to the 2000 watt model; ② Ultimate welding: meets the strict requirements of high-end equipment for welding quality; ③ Stable and reliable: Industrial grade water cooling system+ultra stable structural design, supporting 24-hour continuous operation with low failure rate; ④ Cost optimization: Welding efficiency improvement+omission of subsequent processes+extension of consumable life, long-term comprehensive cost reduction of over 30%, significant increase in investment return rate.

4、After sales guarantee

We Provide a 1-year warranty for the entire machine and free online remote technical support. Our professional after-sales team responds 24 hours a day, provides free online operation training, regularly follows up on equipment usage, and promptly solves any problems encountered by users during use. At the same time, we provide vulnerable parts supply to ensure that users have no worries.

We can provide air-cooled laser welding machines with power levels of 800W, 1200W, 1500W, etc., as well as water-cooled handheld fiber laser welding machines with different laser powers of 1200W, 1500W, 2000W, 3000W, and 6000W. If you happen to need laser welding equipment, please contact us to obtain the latest factory prices for our products. We look forward to sincere cooperation with you.
