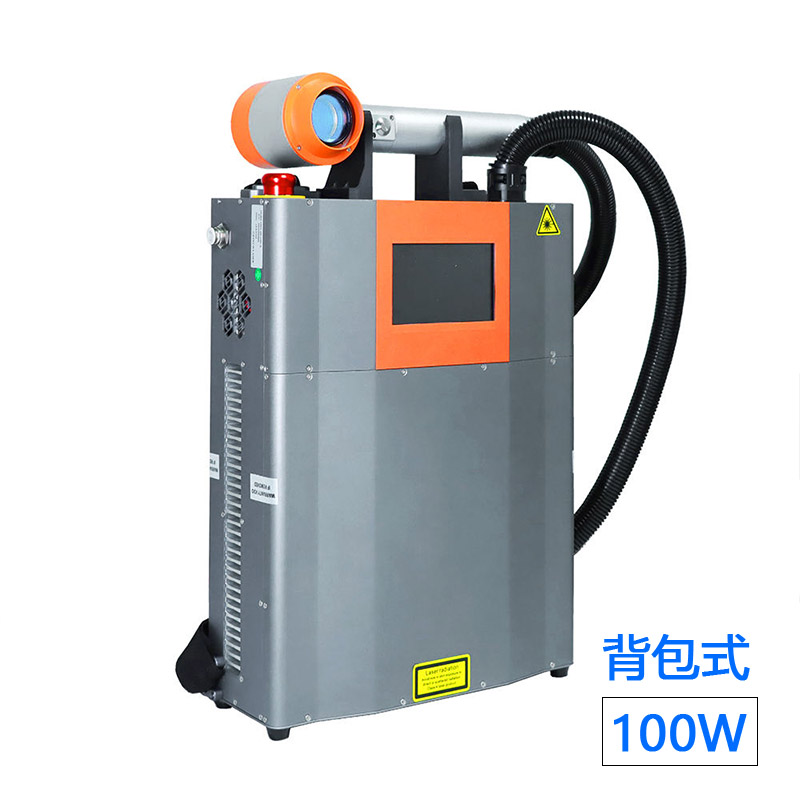

100W backpack-type pulsed laser cleaning machine (air-cooled)

100W backpack-type pulsed laser cleaning machine- precision grade green non-destructive surface treatment equipment

1、Product positioning: Benchmark for precision cleaning of small and medium power

The 100W pulse laser cleaning machine is a core equipment specially designed for small area fine cleaning, precision component processing, and mobile operation scenarios. It integrates MOPA pulse fiber laser technology and efficient air cooling system, with the core principle of "nanosecond level cold peeling", completely replacing traditional chemical cleaning, mechanical polishing and other processes. The equipment focuses on the removal of light attachments such as rust, oxide films, paint layers, and oil stains, and combines the characteristics of "micrometer level precision control" and "zero damage to substrates". The 100W backpack-type pulsed laser cleaning machine is widely used in fields such as mold cleaning, automotive maintenance, electronic manufacturing, and cultural relic restoration. It is the best choice for small and medium-sized enterprises, scientific research institutions, and maintenance stores to achieve efficient cleaning.

2、Core technical parameters (precision standard configuration)

Laser power: 100W, suitable for mild rust and thin film attachments, balancing precision and efficiency.

Laser type: MOPA pulsed fiber laser, with a wide adjustable pulse width range and a peak energy of 1.2mJ, achieving "cold cleaning" without thermal damage.

Laser wavelength: 1064nm, metal absorption rate ≥ 90%, more accurate gasification and peeling of attachments.

Heat dissipation method: Efficient industrial air cooling system, fast heat dissipation, supports 4-hour continuous operation, suitable for desktop/outdoor mobile scenes.

Cleaning scope: rust, oxide film, single-layer/multi-layer paint, oil stains, post weld black ash, carbon deposits, coatings; One stop solution for various lightweight attachments on the surface of precision components.

Work performance: Scanning speed of 10-3000mm/s, adjustable scanning width of 5-100mm, supports 8 scanning patterns, and adapts to workpieces of different shapes.

Operating radius: Equipped with 1.5m armored fiber optic cable as standard, handheld operation is unrestricted and suitable for complex workstation mobility needs.

Power supply requirements: single-phase 220V ± 10%, 50/60Hz, total power ≤ 1100W, universal power supply for household/workshop, no special circuit modification required.

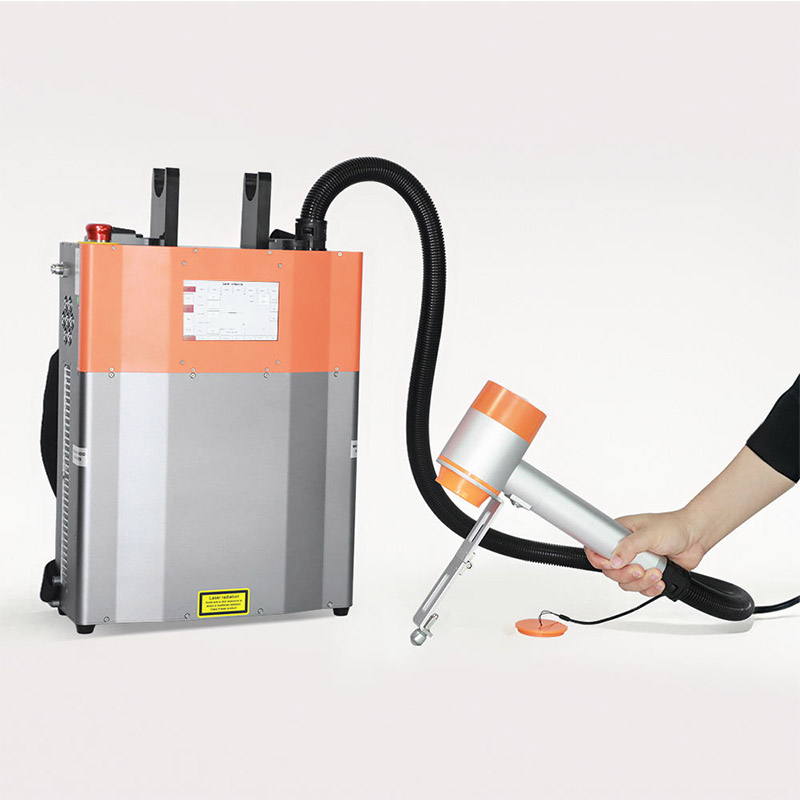

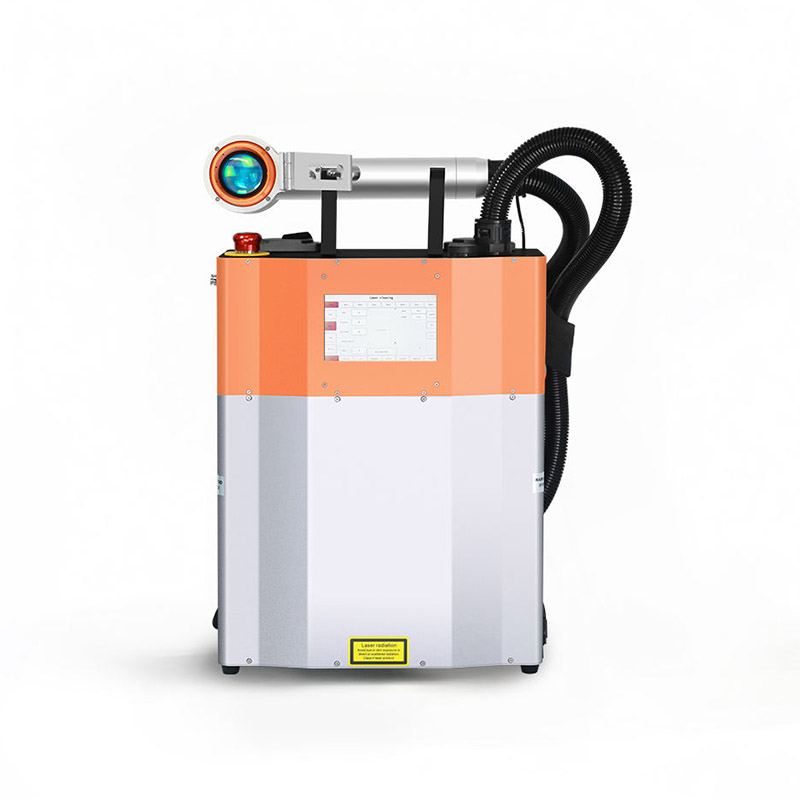

Equipment specifications: The host size is 350 × 130 × 540mm, with a weight of approximately 16kg. It features an integrated portable design and can be carried by a single person.

Protection level: IP54, working environment temperature 5-40 ℃, dustproof and splash proof, suitable for workshop, laboratory, outdoor mobile operations.

Safety configuration: laser level 4 protection, emergency stop interlock, delayed light output, anti misoperation design; Comply with industrial safety standards and ensure operational safety.

3、Seven core advantages (new choice for precision cleaning -100W pulse laser cleaning machine)

3.1 Precise and non-destructive, with zero damage to the substrate

Using MOPA pulse technology, nanosecond level short pulse laser only acts on the surface of the attachment, with a heat affected zone of ≤ 0.01mm and a substrate surface roughness Ra of ≤ 1.2 μ m, without scratches, deformation or material loss. The 100W pulse laser cleaning machine is particularly suitable for scenarios that require high surface accuracy, such as molds, precision gears, and aviation components. After cleaning, it can be directly adapted to subsequent processes such as welding and spraying without the need for secondary processing.

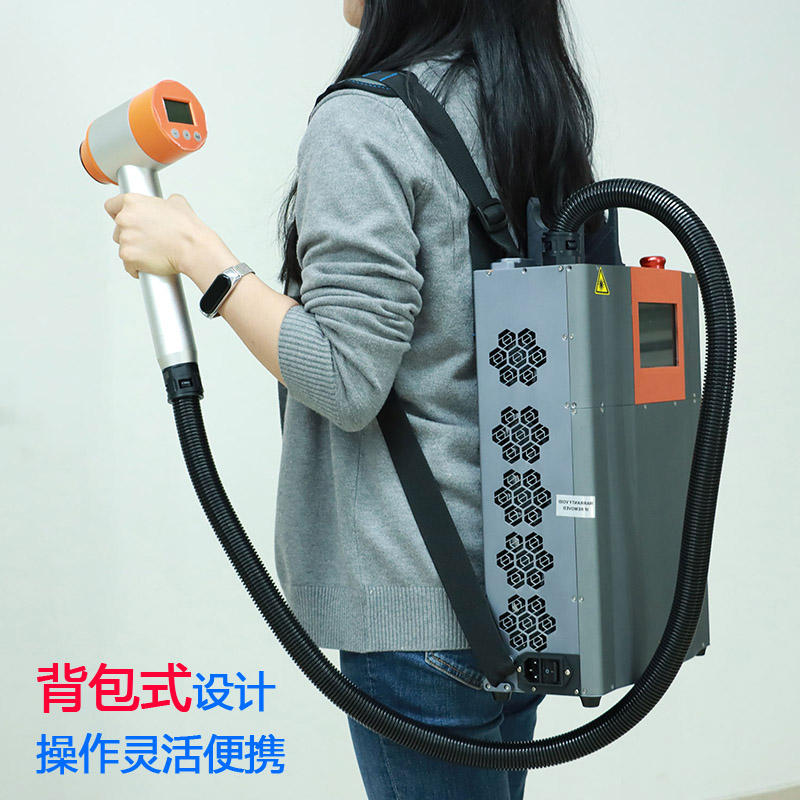

3.2 Portable and efficient, flexible for mobile assignments

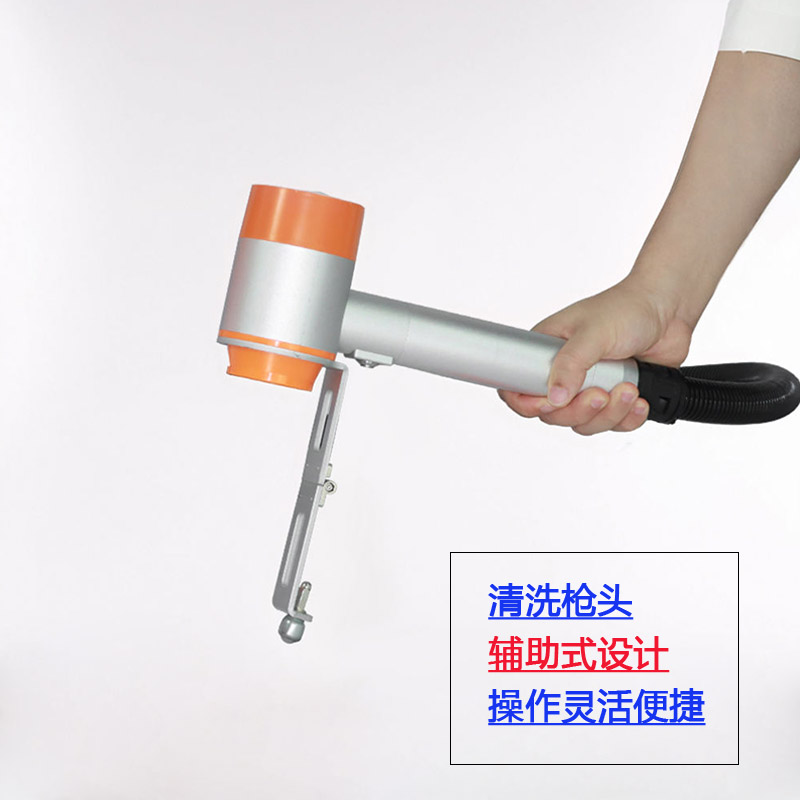

The 100W pulse laser cleaning machine weighs only 22kg and is equipped with a 1.3kg lightweight handheld cleaning head (with built-in anti shake technology), allowing for easy handling and operation by a single person. No need for an external water cooling device, plug in and start working, easily accessible to narrow spaces, high-altitude workstations and other areas that are difficult for traditional equipment to reach, suitable for multiple scenarios such as mobile maintenance and on-site repair.

3.3 Green environmental protection, zero pollution compliance

There are no chemical agents, no dust splashes, and no wastewater generated throughout the process. Only a small amount of recyclable adhesive powder is produced, and carbon emissions are reduced by more than 90% compared to chemical cleaning. The 100W pulse laser cleaning machine complies with ISO14001 environmental standards, completely solving the pollution problem of traditional cleaning processes, especially suitable for environments with strict environmental requirements such as laboratories, cultural relic restoration, and food processing equipment.

3.4 Multi scene full coverage

Material compatibility: Supports cleaning of metal and non-metal surfaces such as carbon steel, stainless steel, aluminum alloy, copper alloy, etc;

Multi functional: It can achieve multiple functions such as rust removal, paint removal, oil removal, oxide film removal, pre weld treatment, and post weld slag removal;

Flexible mode: 8 scanning shapes can be freely switched, one click adaptation to different attachments and workpiece shapes.

3.5 Easy to operate, beginners can quickly get started

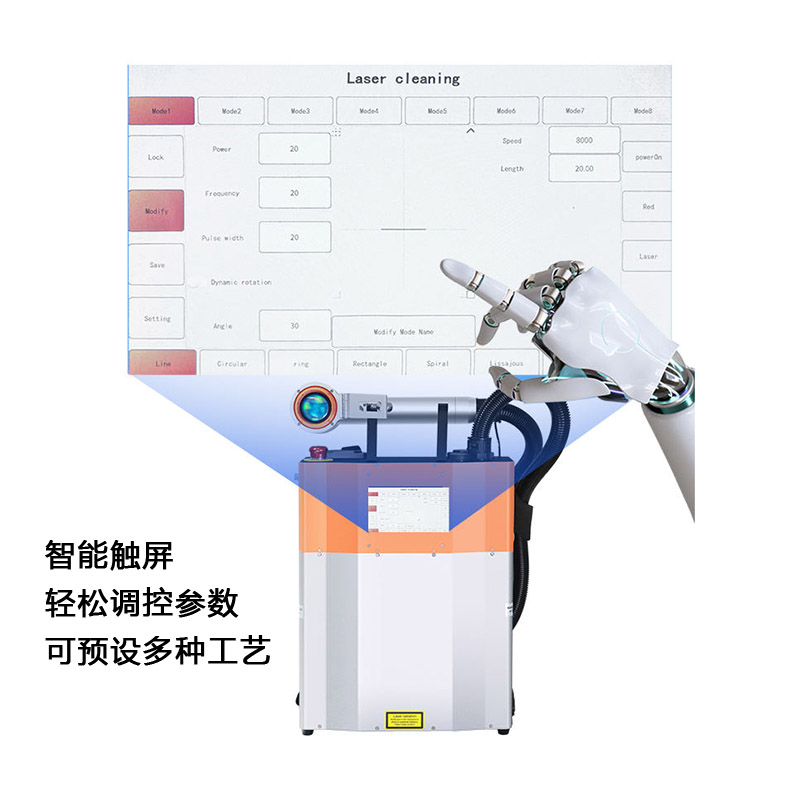

The 100W backpack-type pulsed laser cleaning machine is equipped with a 7-inch touch screen that supports one click calling and parameter storage. No professional technical background is required, and independent assignments can be completed after 30 minutes of training, significantly reducing labor barriers and training costs.

3.6 Low consumption and durability, with better overall cost

No consumables such as chemical agents or sandpaper are consumed, only regular cleaning of optical lenses is required, and the cost of single maintenance is low. The photoelectric conversion efficiency is high, and the energy consumption per square meter is only one-third of that of traditional processes. The comprehensive cost of long-term use is relatively low.

3.7 Outstanding cost-effectiveness, preferred for small and medium-sized scenarios

As an entry-level industrial model, the 100W pulse laser cleaning machine balances performance and budget. The cleaning efficiency has increased by 60% compared to the 50W model, which can meet the daily production needs of small and medium-sized enterprises and maintenance stores.

4、Core Applicable Scenarios (Focusing on Fine and Mobile Needs -100W Backpack-type Pulse Laser Cleaning Machine)

Mold industry: cleaning of injection molds, tire molds, and rubber molds without damaging the accuracy of the mold cavity;

Automotive manufacturing/maintenance: rust removal and refurbishment of automotive sheet metal parts, engine components, and chassis, pre-treatment before welding and removal of black ash after welding;

Electronic manufacturing industry: removal and surface cleaning of oxide films on electronic components, PCB boards, and battery trays to ensure assembly accuracy;

Rail transit industry: cleaning of welds on train bogies before non-destructive testing, removal of oxide layer on aluminum alloy components;

Cultural relic restoration industry: non-destructive dust removal and paint stripping of metal cultural relics and metal components of ancient buildings, preserving the original material characteristics;

Precision Machinery Industry: Removing oil stains and carbon deposits from gears, bearings, and hydraulic components to restore equipment operational accuracy;

Other scenarios: laboratory equipment cleaning, surface treatment of small hardware components, disinfection and cleaning of medical device casings, etc.

5、Quality assurance and attentive service

The equipment comes with a one-year warranty and free online remote technical support. Our professional after-sales team responds 24 hours a day, provides free online operation training, regularly follows up on equipment usage, and promptly solves any problems encountered by users during use. At the same time, we provide vulnerable parts supply to ensure that users have no worries.

We provide pulse laser cleaning machines with different powers such as 100W/200W/300W/500W/1000W, as well as water-cooled handheld fiber laser rust removal machines with different laser powers such as 1500W/2000W/3000W/6000W. If you happen to need laser cleaning/rust removal machine equipment, you can contact us for the latest product factory prices. We look forward to sincere cooperation with you.
