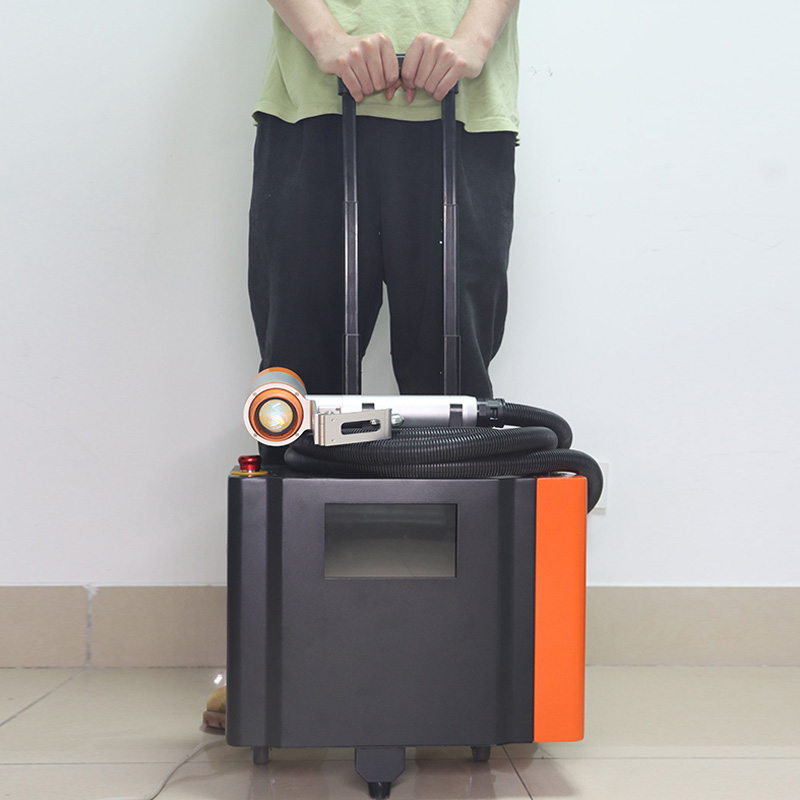

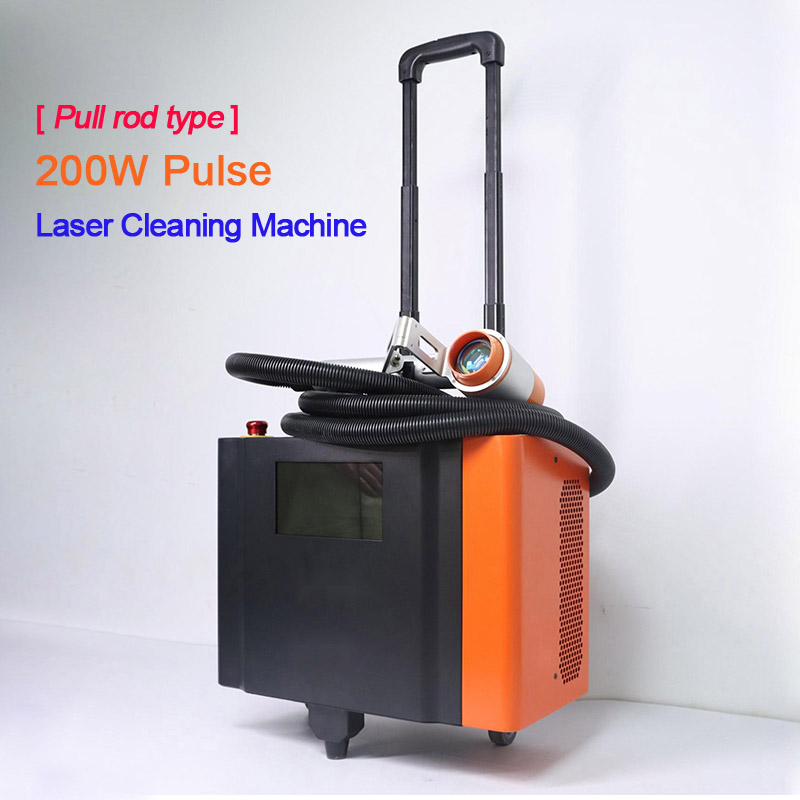

200W air-cooled rod type pulse laser cleaning machine

200W air-cooled pull rod type pulse laser cleaning machine - selected intelligent equipment for small and medium power precision cleaning

1、Product positioning: Selected for fine cleaning of small and medium power
The 200W pulse laser cleaning machine is an upgraded core equipment designed for small and medium-sized fine cleaning, medium to heavy adhesion treatment, and mobile+fixed dual scene operations. It integrates enhanced MOPA pulse fiber laser technology and intelligent air cooling system, with "high-energy cold peeling" as the core principle, fully covering the fine processing advantages of the 100W pulse laser cleaning machine, while breaking through its efficiency bottleneck in the removal of medium to heavy rust and thick coatings. The equipment focuses on the cleaning of precision components and the needs of small and medium-sized batch production, combining "micrometer level precision control" and "batch operation efficiency". It is widely used in fields such as mold maintenance, automobile manufacturing, rail transit, and hardware processing, and is an ideal choice for small and medium-sized enterprises to upgrade production capacity, balance accuracy and efficiency.

2、Core technical parameters (pull rod type 200W pulse laser cleaning machine)
Laser power: 200 watts, suitable for light/medium rust, oxide layer, paint surface, coating, etc., balancing fine and batch processing

Laser type: Enhanced MOPA pulsed fiber laser with adjustable pulse width and peak energy of 1.2mJ.

Laser wavelength: 1064nm, metal absorption rate ≥ 92%, more efficient gasification and peeling of moderate attachments.

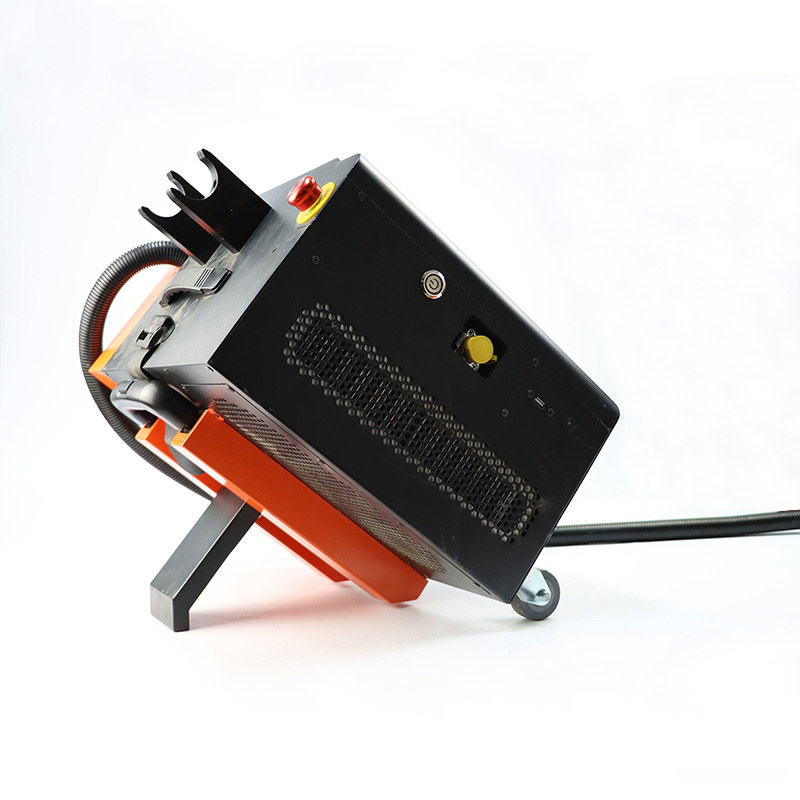

Heat dissipation method: Intelligent constant temperature air cooling system (dual fans+copper heat dissipation fins), no external water source required, supports long-term continuous operation, suitable for small batch production scenarios.

Cleaning efficiency: Double the efficiency of the 100W pulse laser cleaning machine.

Cleaning scope: moderate to mild rust, oxide layer, paint surface, oil stains, post weld black ash, etc., one-stop solution for various attachments on the surface of precision components.

Work performance: Scanning speed of 10-5000mm/s, adjustable scanning width of 5-100mm, supporting 8 types of scanning graphics, suitable for batch processing of workpieces of different sizes and shapes.

Operating radius: Equipped with 3.5m armored fiber optic cable as standard, handheld operation is unrestricted.

Power supply requirements: single-phase 220V ± 10%, 50/60Hz, total power ≤ 1500W, universal power supply for household/workshop, no special line modification required.

Equipment specifications: The host size is 435 × 260 × 540mm, and the packaging weighs approximately 35kg.

Protection level: IP54, working environment temperature 5-45 ℃, dustproof and splash proof, suitable for workshop, laboratory, outdoor mobile operations.

Safety configuration: Laser level 4 protection, emergency stop and other multiple protections, in compliance with industrial safety standards, ensuring operational safety.

3、Eight core advantages (new choice for fine cleaning of small and medium power)
1. Power upgrade for higher cleaning efficiency
The enhanced MOPA laser peak energy of the 200W pulse laser cleaning machine is 100% higher than that of the 100W pulse laser cleaning machine. It can instantly vaporize rust and paint coatings. With high-speed scanning, it only requires one scan to process carbon deposits and stubborn oil stains. The cleaning efficiency is doubled compared to the 100W model, greatly shortening the production cycle of small and medium-sized batches.

2. Intelligent air cooling, stable batch operation like a rock
The 200 watt pulse laser cleaning machine has upgraded to an intelligent constant temperature air cooling system, with dual fans and copper heat dissipation fins designed to increase heat dissipation efficiency by 60%. It can accurately control the temperature fluctuation of the laser module to ≤± 2 ℃ and support continuous operation without attenuation. No external water cooling device is required to avoid water leakage hazards, while meeting the continuous operation requirements of mass production. The lifespan of core components is about 100000 hours.

3. Precise and non-destructive, upgraded with zero damage to the substrate
The 200 watt pulse laser cleaning machine continues the core technology of "nanosecond level cold peeling", with a heat affected zone of ≤ 0.01mm and a substrate surface roughness Ra of ≤ 1.0 μ m, which is more precise than the 100W pulse laser cleaning machine, without scratches, deformation or material loss. For scenarios such as precision molds, aviation components, and high-end hardware that require extremely high surface accuracy, after cleaning, it can be directly adapted to subsequent processes such as welding, spraying, and assembly without the need for secondary processing.

4. Green environmental protection, zero pollution compliance upgrade
There are no chemical agents, no dust splashes, and no wastewater generated throughout the process. Only a small amount of recyclable adhesive powder is produced, and carbon emissions are reduced by more than 95% compared to chemical cleaning. Compliant with environmental standards, especially suitable for scenarios with high environmental requirements such as automobile manufacturing and electronic production, avoiding pollution fines and environmental renovation investments.

5. Dual scene adaptation for wider coverage

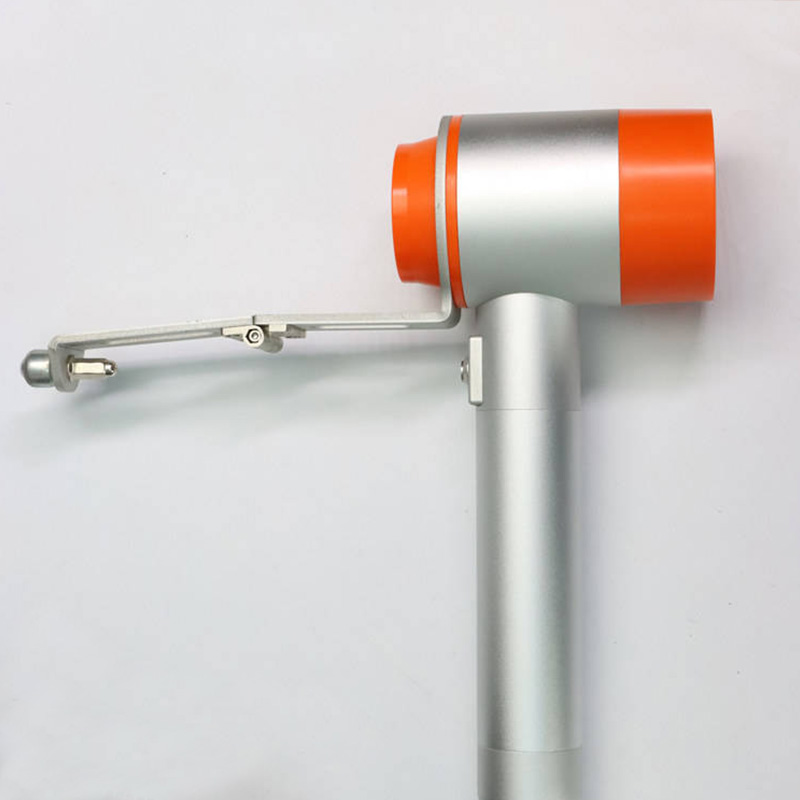

Flexible operation: Lightweight handheld cleaning head (with built-in reinforced shock absorption and anti slip design), capable of 360 ° rotating operation, deep into narrow spaces and complex workstations, with no blind spots for processing;

Fixed adaptation: supports fixed operation with workbench, adapts to small batch standardized component cleaning, and improves job consistency;

Material compatibility: Supports metal cleaning such as carbon steel, stainless steel, aluminum alloy, copper alloy, and some non-metal surfaces, and is compatible with more diverse materials.

6. Intelligent control for more efficient batch operations

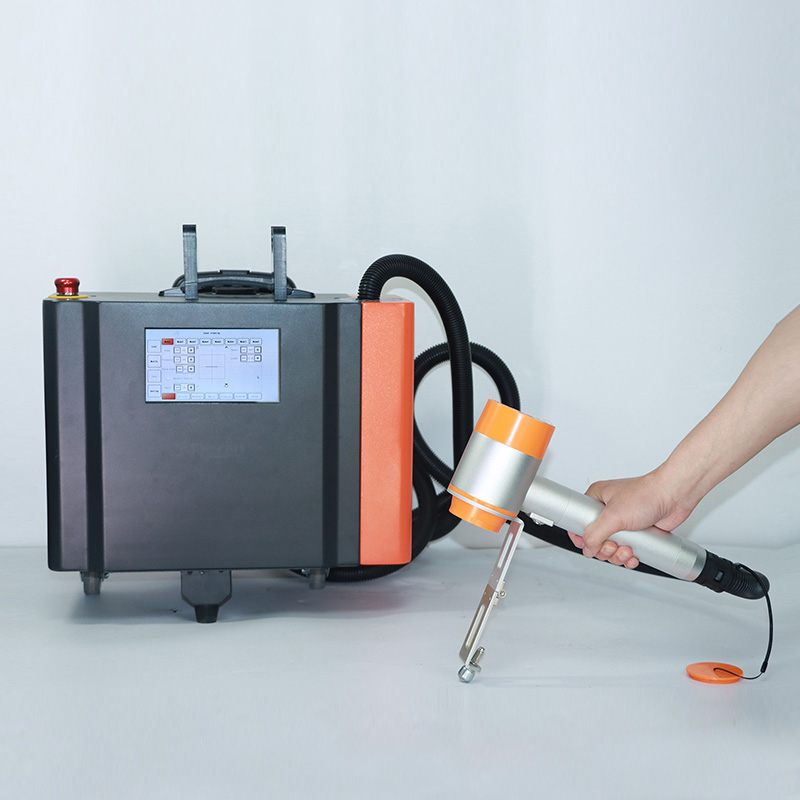

The pull rod 200 watt pulse laser cleaning machine is equipped with a large-sized intelligent touch screen, built-in process parameters, and supports custom parameter storage and one click calling. Pre set cleaning parameters can be set, automatically adapting to continuous processing of workpieces of the same specification. Novices can operate independently after 30 minutes of training, reducing the threshold for manual labor.

7. Low consumption and durability, with better overall cost
No consumables such as chemical agents or sandpaper are consumed, only regular cleaning of optical lenses is required, and the cost of single maintenance is low. The photoelectric conversion efficiency of the 200 watt pulse laser cleaning machine is 20% higher than that of the 100W model, and the processing energy consumption per square meter is only 1/4 of traditional processes. The comprehensive cost of long-term use is reduced by 15% compared to the 100W model, and is reduced by 60% -70% compared to traditional cleaning processes.

8. Outstanding cost-effectiveness, ideal for small and medium-sized batches
The 200W pulse laser cleaning machine, as an entry-level industrial model for small and medium power, is affordable and balances performance and budget. It not only solves the pain point of insufficient efficiency of 100W pulse laser rust removal machine, but also avoids the redundant cost of high-power models, which can meet the daily production needs of small and medium-sized enterprises, small batch production workshops, and maintenance stores.

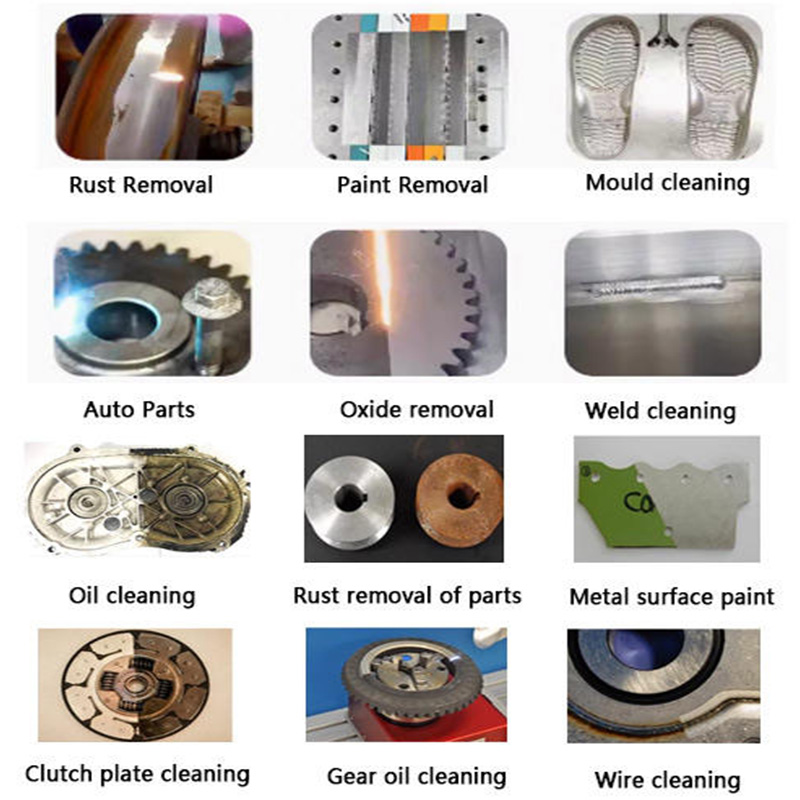

4、Core applicable scenario (air-cooled rod type 200W pulse laser cleaning machine)
4.1 Mold industry: Cleaning and batch maintenance of injection molds, tire molds, rubber molds, and stamping molds, without damaging the accuracy of the mold cavity and improving the service life of the mold;

4.2 Automotive Manufacturing/Maintenance: Batch rust removal and refurbishment of automotive sheet metal parts, engine components, and chassis, pre-treatment before welding and removal of black ash after welding, suitable for mass production of automotive parts;

4.3 Electronic Manufacturing Industry: Removal and surface cleaning of oxide films on electronic components, PCB boards, battery trays, and phone frames to ensure batch assembly accuracy and product yield;

4.4 Rail Transit Industry: Cleaning of welds on train bogies and carriage components before non-destructive testing, removal of oxide layer on aluminum alloy components, and batch maintenance of rail transit components;

4.5 Hardware Processing Industry: Batch rust removal, paint stripping, and oil removal of small and medium-sized hardware parts, stamping parts, and fasteners to improve the quality and efficiency of spraying and electroplating processes and enhance batch production efficiency;

4.6 Precision Machinery Industry: Clean up oil stains and carbon deposits on gears, bearings, and hydraulic components, restore equipment operating accuracy, and adapt to batch maintenance of precision machinery;

4.7 Other scenarios: laboratory equipment cleaning, disinfection and cleaning of medical device casings, batch pretreatment of small metal components, etc.

5、Quality assurance and attentive service
The equipment comes with a one-year warranty and free online remote technical support. Our professional after-sales team responds 24 hours a day, provides free online operation training, regularly follows up on equipment usage, and promptly solves any problems encountered by users during use. At the same time, we provide vulnerable parts supply to ensure that users have no worries.

We provide pulse laser cleaning machines with different powers such as 100W/200W/300W/500W/1000W, as well as water-cooled handheld fiber laser rust removal machines with different laser powers such as 1500W/2000W/3000W/6000W. If you happen to need laser cleaning/rust removal machine equipment, you can contact us for the latest product factory prices. We look forward to sincere cooperation with you.
