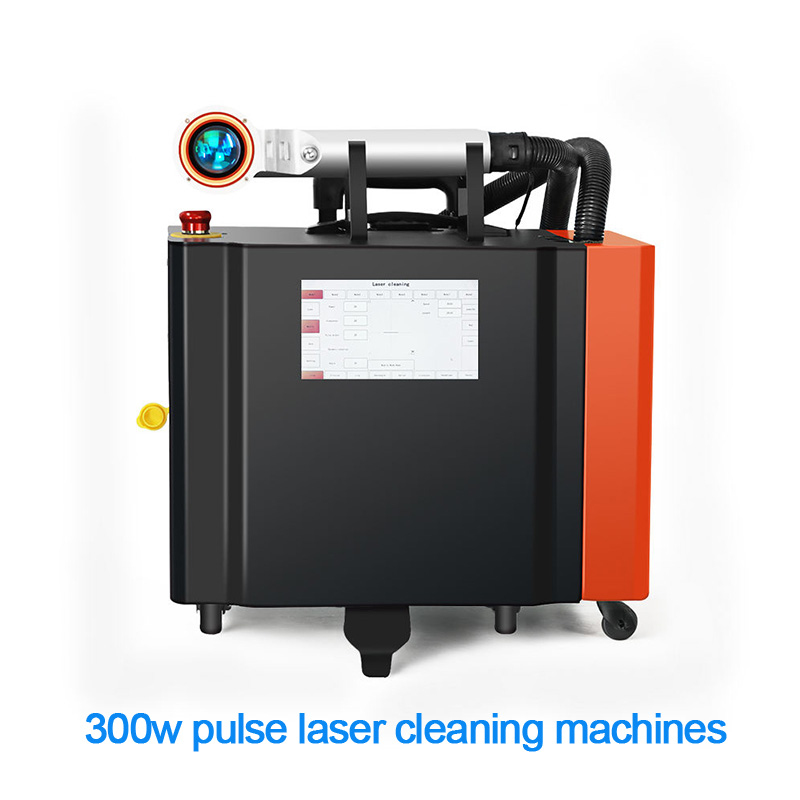

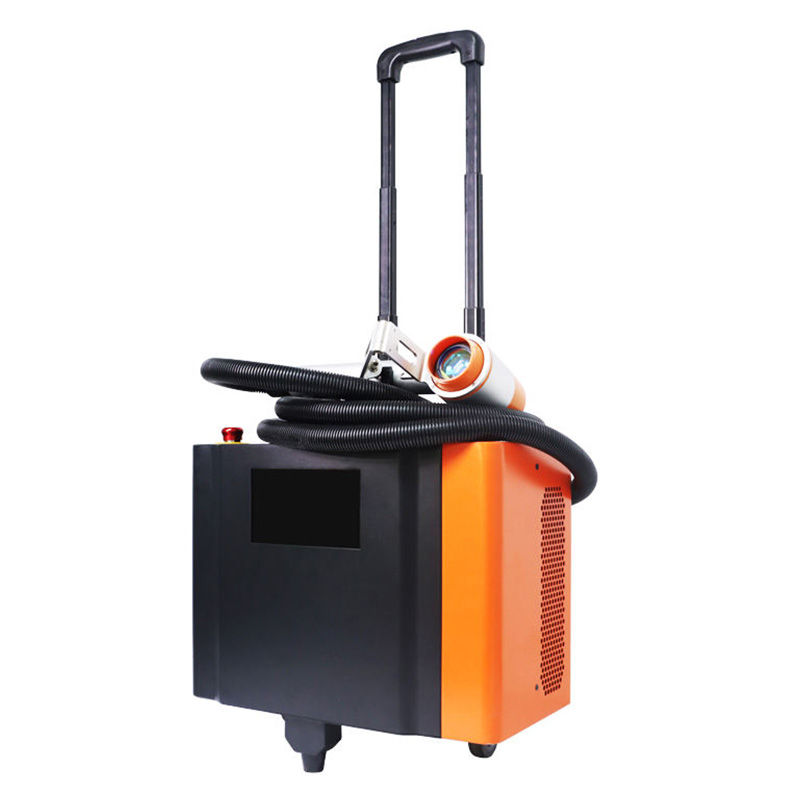

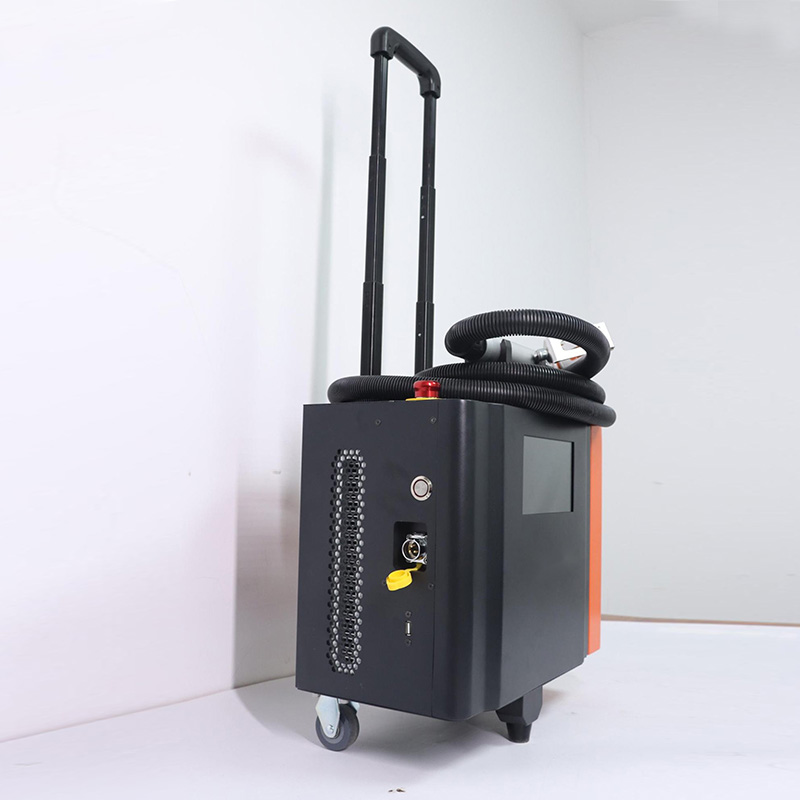

300W pull rod type pulsed laser cleaning machine (air-cooled)

300W pull rod air-cooled pulse laser cleaning machine - medium power precision cleaning core equipment


1、Product positioning: Medium power precision cleaning core equipment


The air-cooled pull rod 300W pulse laser cleaning machine is a core equipment specially designed for small and medium-sized cleaning, medium and light adhesion treatment, and mobile+fixed+automated three scene operations. It integrates flagship MOPA pulse fiber laser technology and intelligent constant temperature air cooling system, with "ultra-high energy cold peeling" as the core principle, fully inheriting the precision processing advantages of the 200W pulse laser cleaning machine, while breaking through its efficiency bottleneck in moderate rust and coating removal. The 300 watt pulse laser cleaning machine focuses on the cleaning needs of precision components, combining "micrometer level precision control" and "scale operation efficiency". It is widely used in fields such as mold batch maintenance, automotive parts production, rail transit equipment manufacturing, and hardware scale processing. It is a core choice for small and medium-sized enterprises to improve quality and efficiency.

2、Core technical parameters (300W pulse laser cleaning machine)

Laser power: 300W, adjustable power.
Laser type: Flagship MOPA pulsed fiber laser, with adjustable pulse width range of 20-500ns, peak energy of 1.5mJ, and more thorough cold cleaning without thermal damage.
Laser wavelength: 1064nm, metal absorption rate ≥ 94%, more efficient gasification and peeling of rust and oxide layer attachments.
Heat dissipation method: Intelligent constant temperature air cooling system, no need for external water source, efficient heat dissipation.
Cleaning efficiency: 60% higher than the 200W pulse laser cleaning machine.
Cleaning range: Suitable for light to medium rust, oxide layer, paint surface, oil stains and other attachments, balancing fine and large-scale treatment.
Work performance: Scanning speed 1-3000mm/s, adjustable scanning width 1-100mm, supports 8 scanning modes, suitable for cleaning and maintenance of workpieces of different sizes and shapes.
Operating radius: Comes standard with 3m armored fiber optic cable, allowing for unrestricted handheld operation and suitable for various cleaning scenarios.
Power supply requirements: single-phase 220V ± 10%, 50/60Hz, total power ≤ 2500W, universal power supply for household/workshop, no special circuit modification required.
Equipment specifications: The host size is 450 * 285 * 540mm, and the packaging weight is about 45kg. It has an integrated portable design and can be carried by a single person.
Protection level IP54, working environment temperature 5-45 ℃, dust-proof and splash proof, suitable for workshop, laboratory, outdoor mobile operations.
The safety configuration includes laser level 4 protection, emergency stop interlock, delayed light output, anti misoperation, light spot warning, etc., which meets industrial safety standards.

3、Nine core advantages (medium power cleaning core equipment)


3.1 Power jump, easy cleaning operation
The MOPA laser peak energy of the 300W pulse laser cleaning machine has increased by 67% compared to the 200W, making it easy to clean rust, oxide layers, oil stains, paint surfaces, etc. The equipment cleaning efficiency has increased by 60% compared to the 200W pulse laser cleaning machine, significantly shortening the production cycle for small and medium-sized batches.
3.2 Intelligent air cooling, large-scale operation is as stable as Mount Tai
Upgrade the intelligent constant temperature air cooling system, improve heat dissipation efficiency by 80%, accurately control the temperature fluctuation of the laser module to ≤± 1 ℃, and support continuous operation. No external water cooling device is required to avoid potential water leakage hazards.
3.3 Precision non-destructive, zero damage to substrate upgraded again
The 300W pulse laser cleaning machine continues and upgrades the core technology of "nanosecond level cold peeling", with a small heat affected zone and a substrate surface roughness Ra ≤ 0.8 μ m, which is finer than the 200W pulse laser cleaning machine, without scratches, deformation or material loss. For scenarios such as precision molds, aviation components, and high-end hardware that require high surface accuracy, after cleaning, it can be directly adapted to subsequent processes such as welding, spraying, and assembly without the need for secondary processing.
3.4 Green environmental protection, zero pollution compliance upgraded again
There are no chemical agents, no dust splashes, and no wastewater generated throughout the process. Only a small amount of recyclable adhesive powder is produced, and carbon emissions are reduced by more than 98% compared to chemical cleaning. Compliant with ISO14001 environmental standards and strict global industrial environmental policies.
3.5 Multi scenario adaptation, covering a wider range

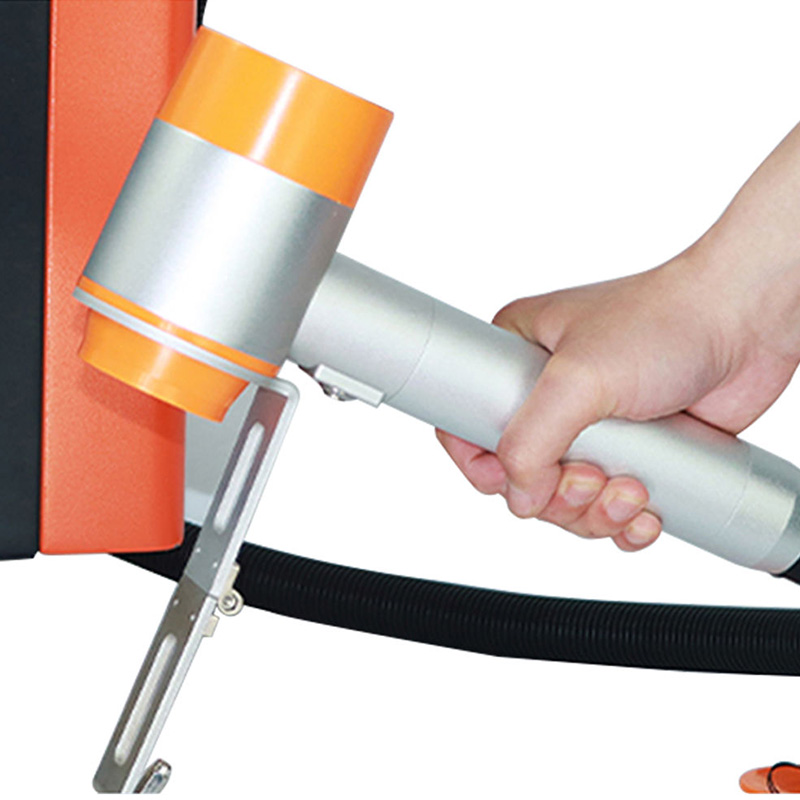

Flexible operation: 1kg lightweight handheld cleaning head, capable of 360 ° rotation operation, can penetrate into narrow spaces and complex workstations, with no blind spots for processing;
Fixed adaptation: supports fixed work with workbench, adapts to small and medium-sized standardized chemical parts cleaning, and improves job consistency;
Material compatibility: Supports cleaning of metal surfaces such as carbon steel, stainless steel, aluminum alloy, copper alloy, special steel, as well as some non-metallic surfaces, and is compatible with a wider range of materials.
3.6 Intelligent control, more efficient homework
The 300 watt pulse cleaning machine is equipped with an intelligent touch screen, built-in process parameters, supports parameter storage and one click calling, and is easy to operate. Novices can operate independently after 30 minutes of training, reducing the threshold for manual labor.
3.7 Low consumption and durability, with better overall cost
No consumables such as chemical agents or sandpaper are consumed, only regular cleaning of optical lenses is required, and the cost of single maintenance is low. The photoelectric conversion efficiency is 25% higher than that of the 200W pulse laser cleaning machine, and the energy consumption per square meter is only 1/5 of the traditional process. The comprehensive cost of long-term use is reduced by 20% compared to the 200W model, and is reduced by 70% -80% compared to the traditional cleaning process.
3.8 Outstanding cost-effectiveness, ideal for small-scale production
As a flagship industrial model with medium power, the 300 watt pulse laser cleaning machine is affordable, balancing performance and budget. It not only solves the pain point of insufficient efficiency in handling heavy attachments of 200W models, but also avoids the redundancy cost of ultra-high power models, which can meet the needs of large-scale production for small and medium-sized enterprises and flexible production for large enterprises.


4、Core Applicable Scenarios (Focusing on Fine and Large Scale Requirements)

Mold industry: online cleaning and batch maintenance of injection molds, tire molds, rubber molds, stamping molds, and die-casting molds, without damaging the accuracy of mold cavities, improving the service life and production efficiency of molds;
Automotive manufacturing/maintenance: Batch rust removal and refurbishment of automotive sheet metal parts, engine components, chassis, and transmission components, pre welding pre-treatment and post welding black ash removal, suitable for large-scale production of automotive parts;
Electronic manufacturing industry: removal and surface cleaning of oxide films on electronic components, PCB boards, battery trays, phone frames, and laptop casings to ensure batch assembly accuracy and product yield;
Rail transit industry: pre weld cleaning of train bogies, carriage components, and track fasteners, removal of oxide layer on aluminum alloy components, and batch maintenance of rail transit components;
Hardware processing industry: batch rust removal, paint removal, and oil removal for small and medium-sized hardware parts, stamping parts, fasteners, and sanitary ware, to improve the quality and efficiency of spraying and electroplating processes and enhance batch production efficiency;
Precision Machinery Industry: Clean up oil and carbon deposits from gears, bearings, hydraulic components, and pneumatic components, restore equipment operation accuracy, and adapt to batch maintenance of precision machinery;
Other scenarios: laboratory equipment cleaning, disinfection and cleaning of medical device casings, batch pretreatment of small metal components, cultural relic restoration, etc.

5、Quality assurance and attentive service


The equipment comes with a one-year warranty and free online remote technical support. Our professional after-sales team responds 24 hours a day, provides free online operation training, regularly follows up on equipment usage, and promptly solves any problems encountered by users during use. At the same time, we provide vulnerable parts supply to ensure that users have no worries.

We provide pulse laser cleaning machines with different powers such as 100W/200W/300W/500W/1000W, as well as water-cooled handheld fiber laser rust removal machines with different laser powers such as 1500W/2000W/3000W/6000W. If you happen to need laser cleaning/rust removal machine equipment, you can contact us for the latest product factory prices. We look forward to sincere cooperation with you.
