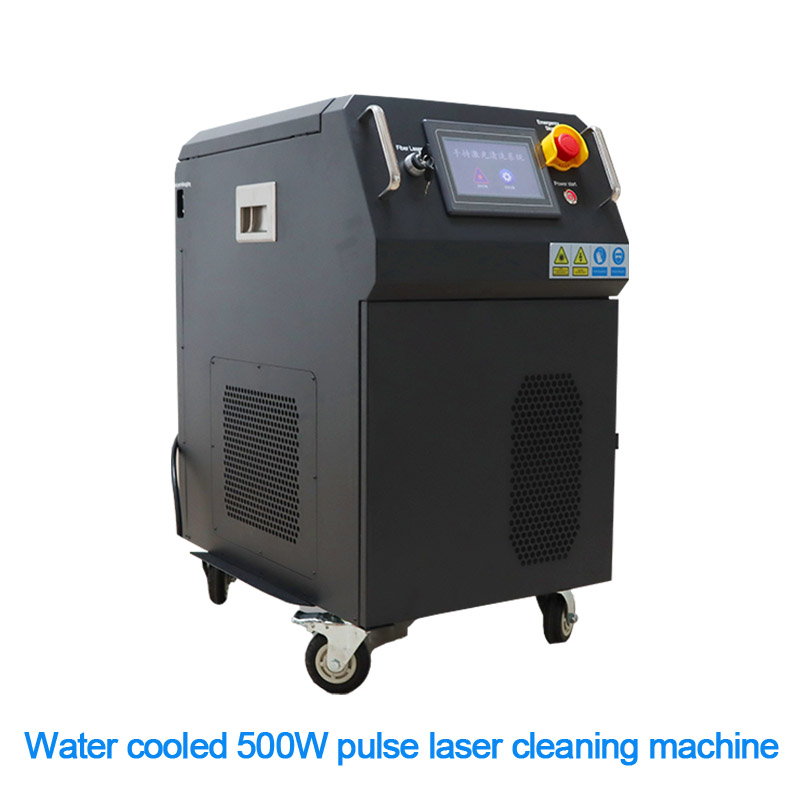

Cabinet type 500w pulse laser cleaning machine

Cabinet type 500W pulse laser cleaning machine - flagship equipment for heavy-duty precision cleaning

1、Product positioning: King of heavy-duty large-scale cleaning

The Cabinet type 500W pulse laser cleaning machine is a top-level equipment designed for mobile, fixed, automated, and heavy-duty operations. It integrates industrial grade pulse fiber laser technology and intelligent dual-mode heat dissipation system, with the core principle of "ultra-high pressure cold peeling", fully inheriting the precision and efficiency advantages of the 300W pulse laser cleaning machine, while breaking through its performance limit in removing medium thickness rust, cured coatings, oil stains, and painted wood. The 500W pulse laser cleaning machine focuses on heavy-duty cleaning needs, combining "micrometer level precision control" and "heavy-duty operation efficiency". It is widely used in the fields of large-scale manufacturing of automotive parts, heavy-duty maintenance of rail transit equipment, large-scale maintenance of molds, and batch processing of hardware. It is a high-quality choice for large enterprises to improve quality and efficiency, and for small and medium-sized enterprises to upgrade production capacity.

2、Core technical parameters (cabinet type 500W pulse laser cleaning machine)

Laser power: 500 watts, freely adjustable power, suitable for various thicknesses of rust, oxide layers, oil stains, and paint attachments, balancing precision and heavy-duty.
Laser type: Industrial grade pulsed fiber laser, with adjustable pulse width range of 2-500ns, peak energy of 15/50mJ, and more thorough cold cleaning without thermal damage.
Laser wavelength: 1064nm, metal absorption rate ≥ 96%, more efficient for gasification and peeling of attachments
Heat dissipation method: Intelligent dual temperature and dual control heat dissipation system, conventional support for long-term continuous operation.
Cleaning efficiency: The efficiency of the 500 watt pulse laser rust remover is 80% higher than that of the 300W model.
Cleaning scope: Various thicknesses of rust, oxide layers, paint surfaces, oil stains, etc., one-stop solution for cleaning core components of precision components, heavy-duty workpieces, and large-scale chemical components.
Performance: Scanning speed 1-1000mm/s, scanning range 1-100mm, adjustable pulse width 30-500mm, supports 8 scanning modes for dual axis, suitable for cleaning and maintenance of workpieces of different sizes and shapes.
Operating radius: Equipped with 10m armored fiber optic cable as standard, handheld operation is unrestricted, suitable for ultra large workpieces and long-distance complex workstation movement needs.
Power supply requirements: single-phase 220V 50/60Hz, total power ≤ 3800W.
Equipment specifications: The host size is 900 * 640 * 1040mm, weighing approximately 125kg, with a reinforced integrated portable design and equipped with universal wheels for easy movement.
Safety configuration: Laser level 4 protection, emergency stop interlock, delayed light output, anti misoperation, spot warning, etc., in compliance with international industrial safety standards.

3、8 core advantages -500w pulse laser cleaning machine

3.1 Power jump, instant removal of ultra heavy attachments
The peak energy of the 500W pulse laser cleaning machine is 60% higher than that of the 300W model. With a speed scanning of 1000mm/s, it can handle stubborn rust, oxide layers, oil stains, paint surfaces, etc. with only one scan. The cleaning and rust removal efficiency is 80% higher than that of the 300W model, shortening the mass production cycle by more than half.
3.2 Intelligent and efficient heat dissipation, stable heavy load operation
The intelligent water-cooled high-efficiency heat dissipation system accurately controls the temperature fluctuation of the laser module to ≤± 0.8 ℃, and the heat dissipation efficiency is 100% higher than that of the 300W pulse laser cleaning machine, supporting long-term continuous operation.
3.3 Precision non-destructive, top-notch guarantee of zero damage to substrate
The 500 watt pulse laser rust removal machine continues and upgrades the core technology of "nanosecond level cold peeling", with a small heat affected zone and a substrate surface roughness Ra ≤ 0.6 μ m, which is finer than the 300W model, without scratches, deformation or material loss. For scenarios such as aviation components, precision molds, and high-end hardware that require extremely high surface accuracy, after cleaning, it can be directly adapted to subsequent processes such as welding, spraying, and assembly without the need for secondary processing.
3.4 Green and environmentally friendly, zero pollution compliant top-level standards
There are no chemical agents, no dust splashes, and no wastewater generated throughout the process. Only a small amount of recyclable adhesive powder is produced, and carbon emissions are reduced by more than 99% compared to chemical cleaning. Compliant with ISO14001 environmental standards and the world's most stringent industrial environmental policies, it is particularly suitable for production scenarios with high environmental requirements such as automobile manufacturing and electronic production, avoiding pollution fines and environmental renovation investments.
3.5 Four scenario adaptation, covering the needs of the entire industry
Flexible operation: Enhanced handheld cleaning head, capable of 360 ° rotation operation, can penetrate deep holes, narrow slits, welds and other complex structures of ultra large components, with no blind spots for processing;
Fixed adaptation: supports fixed operations with heavy-duty workbenches, adapts to batch standardized component cleaning, and improves job consistency;
Automation adaptation: supports linkage with robots, adapts to large-scale assembly line production, and achieves unmanned and digital cleaning;
Material compatibility: Supports cleaning of metal surfaces such as carbon steel, stainless steel, aluminum alloy, copper alloy, special steel, titanium alloy, as well as non-metallic surfaces such as ceramics, glass, composite materials, plastics, stone, and concrete.
3.6 Intelligent top configuration, more efficient for large-scale operations
The 500w pulse laser cleaning machine is equipped with an intelligent touch screen, built-in commonly used process parameters, and supports parameter storage and one click calling. Intelligent cleaning system, easy to operate, beginners can operate independently after 30 minutes of training, reducing the threshold for manual labor.
3.7 Low consumption and durability, optimal overall cost
No consumables such as chemical agents or sandpaper are consumed, only regular cleaning of optical lenses is required, and the cost of single maintenance is low. The photoelectric conversion efficiency is 60% higher than that of the 300W rod type pulse laser cleaning machine, and the energy consumption per square meter is only 1/6 of that of traditional processes. The comprehensive cost of long-term use is reduced by 25% compared to the 300W model, and reduced by 80% -90% compared to traditional cleaning processes.
3.8 Strong scalability and full functional coverage
Support multiple functions such as cleaning, rust removal, paint removal, oil removal, oxide film removal, pre weld treatment, post weld slag removal, surface activation, etc. One equipment can meet various process requirements and adapt to special needs of different industries.

4、Core applicable scenarios (500w pulse laser cleaning machine with fine focusing, heavy-duty, and batch requirements)

4.1 Automotive Manufacturing Industry: Rust removal and refurbishment of automotive sheet metal parts, engine components, chassis, gearbox, and axles, pre welding pretreatment, and post welding black ash removal.
4.2 Rail Transit Industry: Maintenance and cleaning of train bogies, carriage components, track fasteners, and high-speed rail hubs.
4.3 Mold industry: Large scale online cleaning and maintenance of injection molds, tire molds, rubber molds, stamping molds, and die-casting molds, without damaging the accuracy of the mold cavity, improving the service life and production efficiency of the mold.
4.4 Hardware processing industry: rust removal, paint stripping, and oil removal for small and medium-sized hardware parts, stamping parts, fasteners, sanitary ware, and stainless steel products, to improve the quality and efficiency of spraying and electroplating processes.
4.5 Precision Machinery Industry: Clean up oil and carbon deposits from gears, bearings, hydraulic components, pneumatic components, and aviation parts, restore equipment operation accuracy, and adapt to batch maintenance of precision machinery.
4.6 Construction Machinery Industry: Cleaning and maintenance of core components of construction machinery such as excavators, cranes, and loaders.
4.7 Other heavy-duty scenarios: power equipment, medical devices, cultural relic restoration, laboratory equipment cleaning, etc.

5、Quality assurance and exclusive services

The equipment comes with a one-year warranty and free online remote technical support. Our professional after-sales team responds 24 hours a day, provides free online operation training, regularly follows up on equipment usage, and promptly solves any problems encountered by users during use. At the same time, we provide vulnerable parts supply to ensure that users have no worries.

We provide pulse laser cleaning machines with different powers such as 100W/200W/300W/500W/1000W, as well as water-cooled handheld fiber laser rust removal machines with different laser powers such as 1500W/2000W/3000W/6000W. If you happen to need laser cleaning/rust removal machine equipment, you can contact us for the latest product factory prices. We look forward to sincere cooperation with you.
