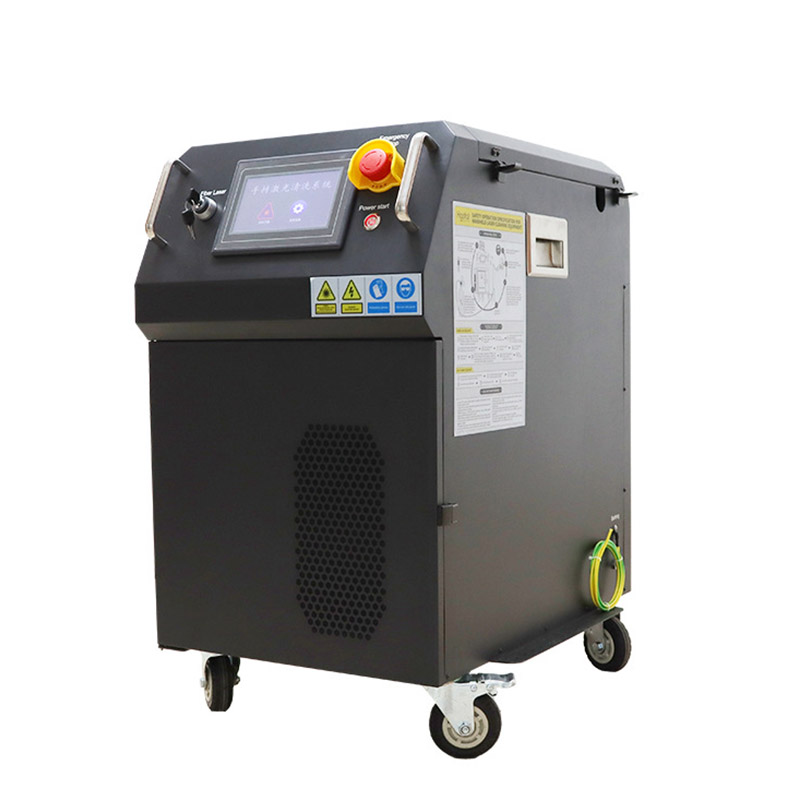

Cabinet type 1000w pulse laser cleaning machine

1000W pulse laser cleaning machine - flagship equipment for laser cleaning

1、Product positioning: King of heavy-duty cleaning industry

The 1000W pulse laser cleaning machine is a top-level flagship cleaning equipment specially designed for medium thickness rust, oxide layers, oil stains, coatings, etc. It integrates industrial grade pulse fiber laser technology and intelligent heat dissipation system, with the core principle of "ultra-high pressure cold peeling+heavy-duty stable output", fully inheriting the precision and heavy-duty advantages of the 500W pulse laser cleaning machine, while breaking through its performance limit in thick rust, stubborn coatings, and overall cleaning of large components. The equipment focuses on heavy-duty cleaning needs and combines "nano level precision control" with "scale operation efficiency". It is widely used in fields such as automobile manufacturing, rail transit equipment assembly, ship dock repair, and mass production of heavy machinery. It is a high-quality solution for large enterprises to upgrade production capacity and strengthen multi scenario operations.

2、Core technical parameters (ultra heavy top-level configuration)

Laser power: 1000W, freely adjustable power, suitable for all grades of rust (light/medium/heavy), oxidation layers, oil stains, paint attachments, and both fine and large-scale processing.

Laser type: Industrial grade pulsed fiber laser, adjustable pulse width, peak energy of 50mJ, more thorough cold cleaning without thermal damage.

Laser wavelength: 1064nm, metal absorption rate ≥ 98%, more efficient for gasification and peeling of stubborn attachments.

Heat dissipation method: Intelligent dual temperature dual control water-cooled heat dissipation system, efficient heat dissipation, supports long-term continuous operation.

Cleaning efficiency: Compared with the 500W pulse laser cleaning machine, the efficiency of the 1000W pulse laser rust removal machine has increased by 105%, doubling the efficiency.

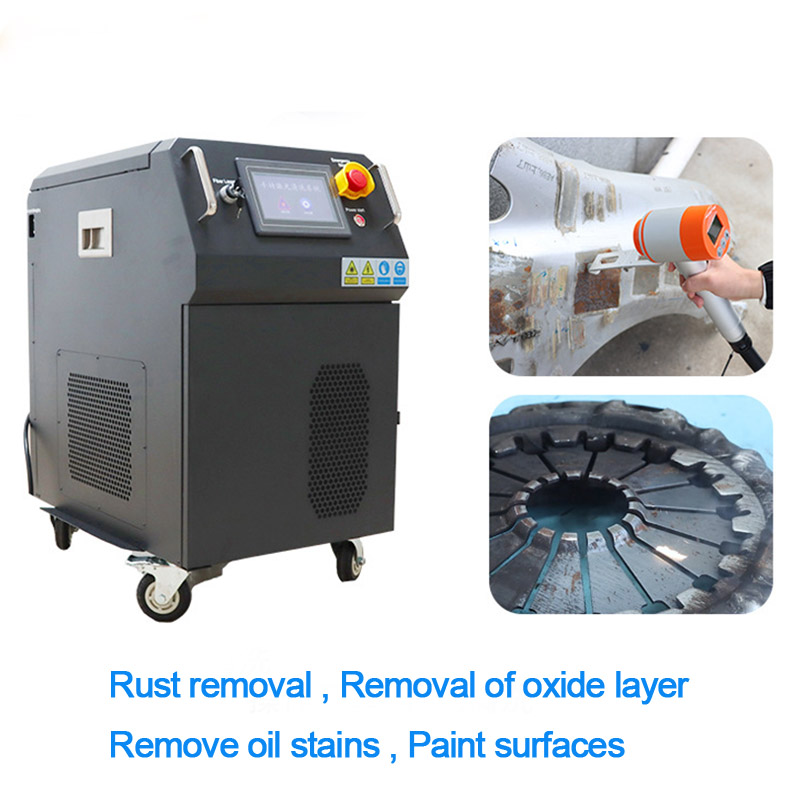

Cleaning scope: Various thicknesses of rust, oxide layers, paint surfaces, oil stains, rubber attachments, etc., one-stop solution for cleaning core components of precision components, heavy-duty workpieces, and large-scale chemical components.

Performance: Scanning speed 1-1000mm/s, scanning range 1-100mm, adjustable pulse width 30-500mm, supports 8 scanning modes for dual axis, suitable for cleaning and maintenance of workpieces of different sizes and shapes.

Operating radius: Equipped with 10m armored fiber optic cable as standard, handheld operation is unrestricted, suitable for ultra large workpieces and long-distance complex workstation movement needs.

Power supply requirements: single-phase 220V 50/60Hz, total power ≤ 5500W.

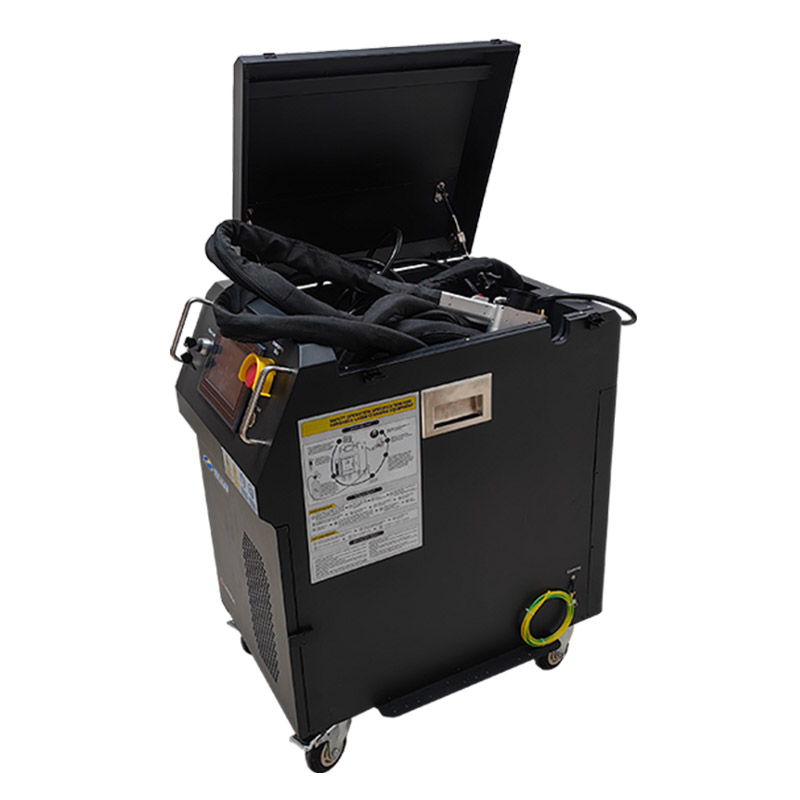

Equipment specifications: The host size is 900 * 640 * 1040mm, weighing approximately 145kg, with a reinforced integrated portable design and equipped with universal wheels for easy movement.

Safety configuration: Laser level 4 protection, emergency stop interlock, delayed light output, anti misoperation, spot warning, etc., in compliance with international industrial safety standards.

3、Nine core advantages (professional non-destructive cleaning new peak)

3.1 Doubling power, instant removal of extremely thick attachments

The peak energy of the 1000W pulse laser cleaning machine is doubled compared to 500W, which can easily remove thick rust, paint coatings, oil stains, oxides, etc., reducing costs and increasing efficiency for enterprises, and helping them develop better.

3.2 Industrial dual temperature and dual control intelligent heat dissipation, heavy load operation is as stable as Mount Tai

Upgrade the intelligent dual temperature and dual control cooling system, enhance the water cooling efficiency by 100% compared to the 500W model, and ensure that the temperature fluctuation of the laser module is ≤ ± 1 ℃; Support 24-hour continuous operation.

3.3 Nano level precision, ultimate guarantee of zero damage to substrate

Continuing and upgrading the core technology of "nanosecond level cold peeling", the heat affected zone is small, and the surface roughness Ra of the substrate is ≤ 0.4 μ m, which improves the accuracy by 33% compared to the 500W pulse laser cleaning machine, without scratches, deformation or material loss. For aerospace precision components, large precision molds, high-end industrial equipment and other scenarios that require extremely high surface accuracy, after cleaning, it can be directly adapted to subsequent processes such as welding, spraying, and assembly without the need for secondary processing, with a yield rate of 99.99%.

3.4 Green and environmentally friendly, zero pollution

There are no chemical agents, no dust splashes, and no wastewater generated throughout the process. Only a small amount of recyclable adhesive powder is produced, and carbon emissions are reduced by more than 99.5% compared to chemical cleaning. Compliant with ISO14001 environmental standards.

3.5 Full scenario adaptation, covering the needs of the entire industry

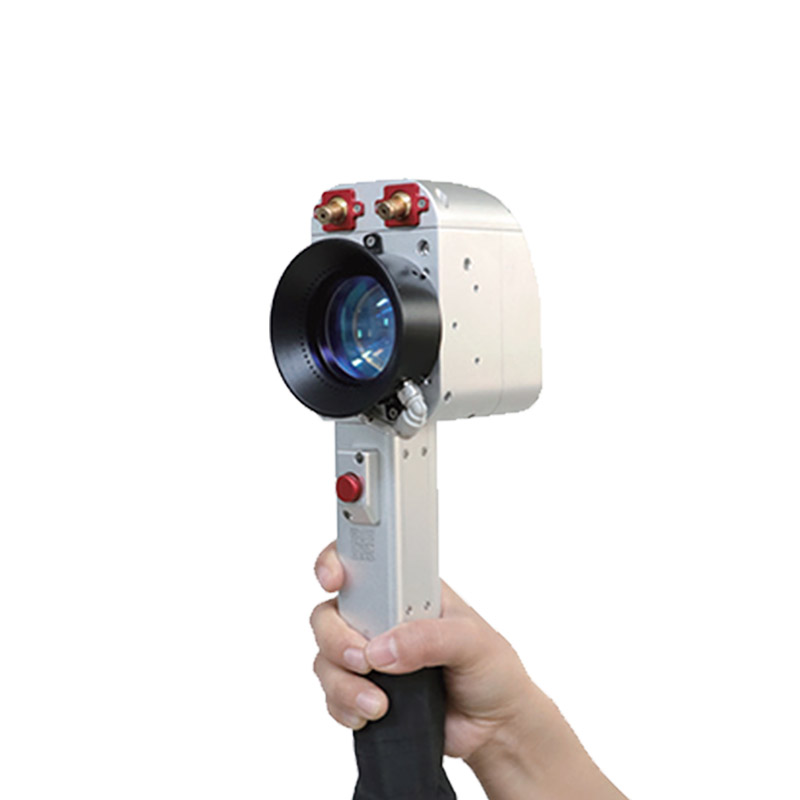

3.5.1 Handheld Flexible Operation: 1kg ultra heavy handheld cleaning head, lightweight and more convenient, can penetrate deep holes, narrow slits, welds, cavities and other complex structures of large components;

3.5.2 Fixed Heavy Duty Operations: Supports matching with workbench fixed operations, suitable for cleaning large standardized chemical components, and improves job consistency to 99%;

3.5.3 Deep integration of automation: supports linkage with industrial robots, etc., to achieve unmanned, digital, and intelligent cleaning;

3.5.4 Mobile Operations: Supports the installation of mobile platforms and rail mounted work vehicles, suitable for industrial scenarios such as on-site cleaning of large and long workpieces;

3.5.5 Multi material compatibility: Supports cleaning of all types of metals such as carbon steel, stainless steel, aluminum alloy, copper alloy, special steel, titanium alloy, as well as non-metallic surfaces such as ceramics.

3.6 Intelligent top configuration, more efficient for large-scale operations

Equipped with an industrial grade touch screen for easier operation, built-in commonly used process parameters, supporting parameter storage and one click calling. Novices can operate independently after 30 minutes of training, significantly reducing labor barriers and management costs.

3.7 Low consumption and durability, more cost-effective overall cost

No chemical agents, sandpaper or other consumables wear and tear, only regular cleaning of optical lenses is required, with low single maintenance costs. The photoelectric conversion efficiency is 35% higher than that of the 500W pulse laser cleaning machine, and the processing energy consumption per square meter is only 1/8 of traditional processes. The comprehensive cost of long-term use is reduced by 30% compared to the 500W model, and reduced by 85% -95% compared to traditional cleaning processes.

3.8 Multi functional integration, replacing multiple traditional equipment with one device

Support cleaning, paint stripping, oil removal, oxide film removal, pre weld treatment, post weld slag removal, slight melting, coating peeling, stain removal, etc. One device can replace various traditional equipment such as chemical cleaning machines, sandblasting equipment, polishing machines, paint stripping agents, etc., greatly saving equipment procurement costs and workshop floor space.

3.9 Able to work remotely, unrestricted in complex working conditions

Equipped with 10m armored optical fiber as standard, it can easily achieve long-distance and large-scale operations, and complete comprehensive cleaning of large equipment and components without the need to move the host, greatly improving the efficiency of complex working conditions.

4、Core applicable scenarios (focusing on precision+overload+large-scale demand)

4.1 Automotive manufacturing industry: Batch rust removal and refurbishment of the entire car body, chassis, engine, gearbox, axle, and wheel hub, pre welding pre-treatment and post welding black ash removal, with an efficiency 8 times higher than traditional processes;

4.2 Rail Transit Industry: Maintenance and cleaning of bogies, carriages, frames, track fasteners, and high-speed rail hubs for high-speed trains, subway trains, and urban rail trains;

4.3 Mold industry: Large scale cleaning and maintenance of injection molds, tire molds, rubber molds, stamping molds, and die-casting molds, without damaging the accuracy of the mold cavity, improving the service life and production efficiency of the mold by more than 30%;

4.4 Heavy machinery industry: complete machine rust refurbishment and core component cleaning of construction machinery such as excavators, cranes, loaders, bulldozers, etc;

4.5 Hardware processing industry: rust removal, paint stripping, and oil removal for large hardware components, stamping parts, fasteners, sanitary ware, stainless steel products, and steel structural components;

4.6 Aerospace industry: Precision cleaning, rust removal, and coating peeling of aircraft engine components, aircraft fuselage structural components, and aerospace equipment components to meet aerospace grade precision and quality requirements;

4.7 Other scenarios: Surface cleaning and maintenance of chemical equipment, electrical equipment, high-end equipment in ancient architectural laboratories, and medical devices.

5、Quality assurance and exclusive services

The equipment comes with a one-year warranty and free online remote technical support. Our professional after-sales team responds 24 hours a day, provides free online operation training, regularly follows up on equipment usage, and promptly solves any problems encountered by users during use. At the same time, we provide vulnerable parts supply to ensure that users have no worries.

We provide pulse laser cleaning machines with different powers such as 100W/200W/300W/500W/1000W, as well as water-cooled handheld fiber laser rust removal machines with different laser powers such as 1500W/2000W/3000W/6000W. If you happen to need laser cleaning/rust removal machine equipment, you can contact us for the latest product factory prices. We look forward to sincere cooperation with you.
