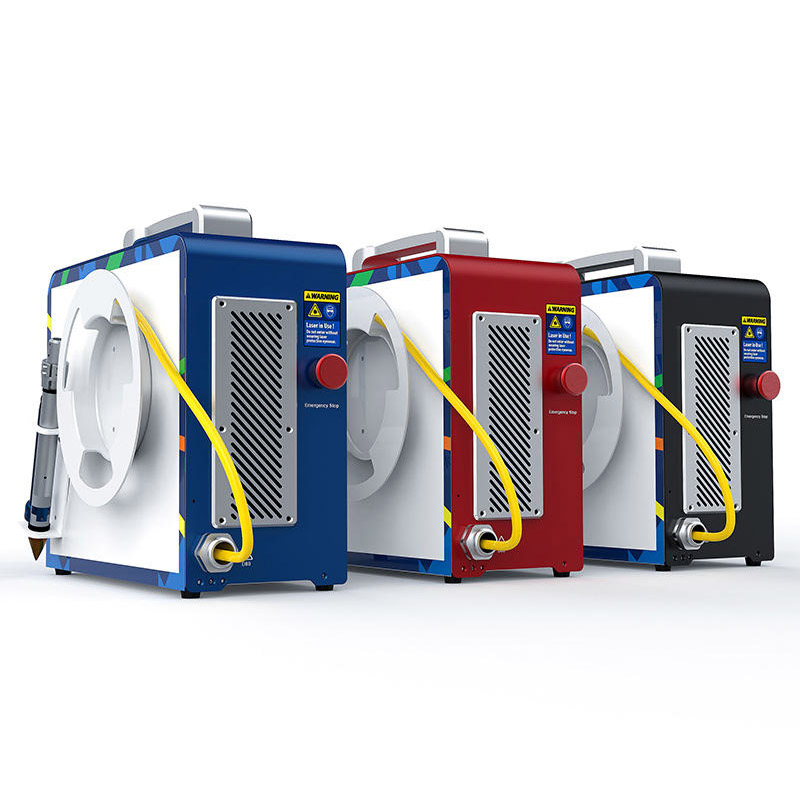

1000W pulse laser spot welding machine

1000W pulse laser spot welding machine

The 1000W pulse laser spot welding machine is an efficient and stable laser welding equipment specially designed for small and medium power precision welding scenarios. It adopts high-end QCW pulse fiber laser technology, and with super strong energy output, precise energy control system, and flexible operation mode, it is widely suitable for precision spot welding and small batch welding needs in multiple industries such as thin plate welding, advertising word welding, lighting welding, automotive parts, hardware, medical equipment, etc., taking into account welding depth, efficiency, and quality. It is the core flagship equipment for enterprises to achieve refined welding upgrading.

1、Product Core Advantage - Portable Spot Welding Machine

1.1 Super Power, Upgraded Welding Performance

The 1000W pulse laser welding machine adopts a high-end QCW pulse fiber laser source, with an adjustable pulse width of 1-50ms, a peak power of 1000W, and an energy output stability of ≤±1.5%. It can accurately control the size and depth of the solder joint, completely eliminating problems such as virtual welding, solder leakage, and solder through. The welding depth can reach 0.2-1.5mm (adjusted according to the material), and the welding scar is flat and smooth, without the need for subsequent polishing treatment, greatly improving the appearance texture and welding strength of the product, meeting the strict requirements of precision components.

1.2 Efficient and energy-saving, with better operation and maintenance costs

The overall power of the machine is 3000w, which saves more than 70% energy compared to traditional arc welding machines. Adopting industrial grade modular design, the core components have a service life of up to 100000 hours, stable performance, and reduce long-term operation and maintenance costs for enterprises.

1.3 Flexible adaptation, full coverage of overloaded scenarios

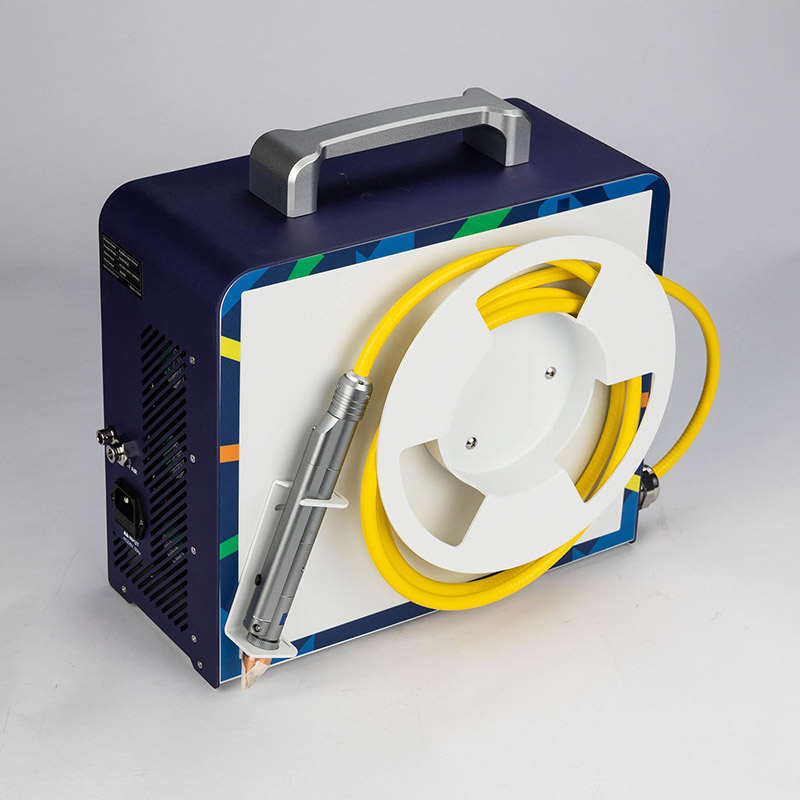

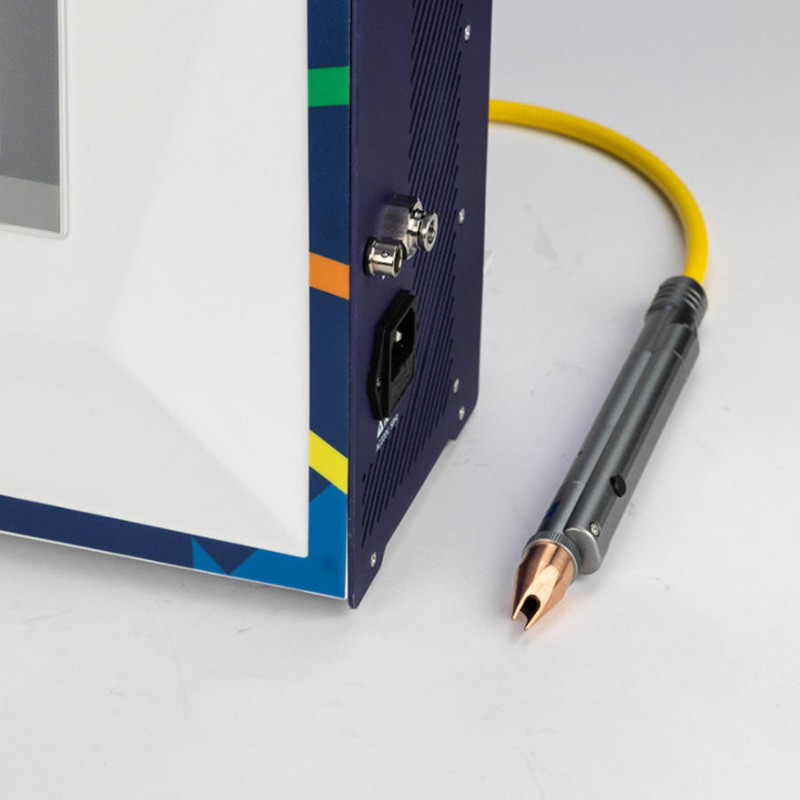

The 1000W portable spot welding machine can flexibly switch the welding gun angle according to the shape, size, and thickness of the workpiece. The handheld welding gun adopts a lightweight design, weighing only 300g, equipped with an ergonomic handle and shock-absorbing structure, ensuring long-term operation without fatigue.

1.4 Safe and stable, easy to operate and understand

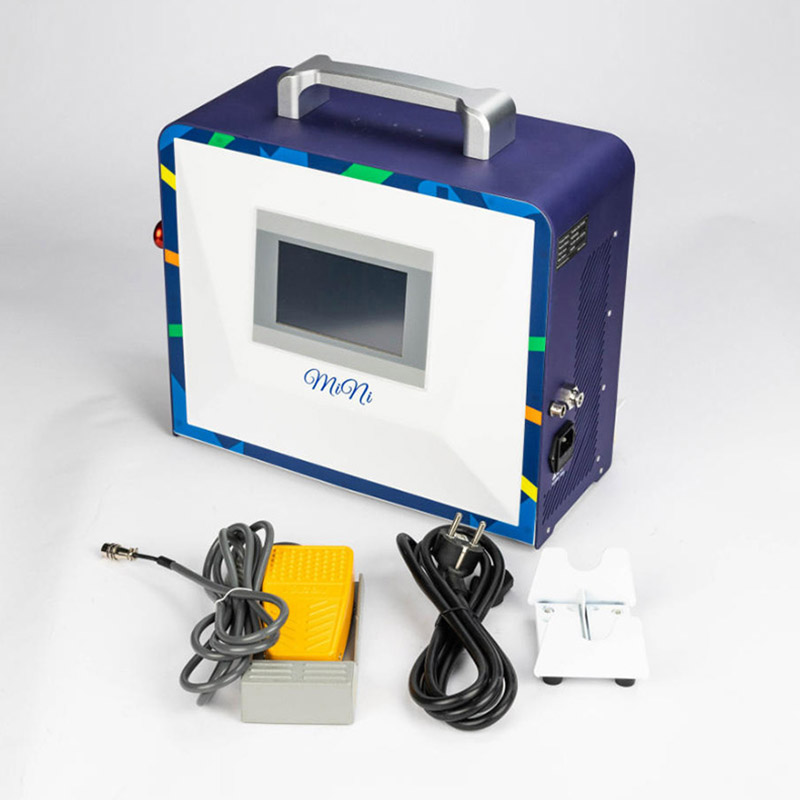

The laser level is level 4, equipped with multiple safety protection devices such as laser protective glasses and emergency stop button, to prevent safety accidents such as laser leakage and high-temperature burns. Industrial grade touch screen, simple and intuitive operation interface, supports custom process parameters, can be directly called, and beginners can get started with operation after simple training.

1.5 Environmentally friendly and pollution-free, in line with top industry standards

The welding process has no open flames, no smoke, no noise, no harmful gas emissions, no need to add solder, avoids chemical pollution, and meets environmental standards.

2、Core technical parameters - QCW pulse laser welding machine

Laser power: peak power 1000W, average power 300W;

Laser wavelength: 1080 ± 5nm;

Fiber length: standard 2-3m;

Pulse width range: 1-50ms;

Welding thickness: 0.1-1.5mm (adjusted according to material);

Pulse frequency: adjustable from 1-300Hz;

Core diameter: 100 μ m;

Maximum single pulse energy: 10J/10ms;

Working environment temperature: -20 ℃~55 ℃, humidity ≤ 85%;

Power supply requirements: single-phase 220V ± 10%, 50/60Hz;

Equipment size: 380 × 195 × 340mm;

Equipment weight: Net weight 13kg, gross weight approximately 16kg;

3、Applicable Industry - Portable Spot Welding Machine

Thin plate welding, advertising word welding, lighting welding, jewelry welding, automotive parts, hardware products, medical equipment, precision instruments, home appliance manufacturing and other industries.

4、Product Core Competitiveness - Pulse Laser Spot Welding Machine

Strong power adaptability: 1000W peak power, balancing precision welding and small batch welding, with one device covering multiple scene requirements;

Outstanding cost-effectiveness: Compared to devices of the same power, the cost is reduced by more than 15%, and it is equipped with a high-end QCW dedicated laser generator to ensure welding quality and operational stability;

Easy to operate: No need for professional senior welders, beginners can get started with simple training, greatly reducing the operating threshold and labor costs;

Wide adaptability: can weld various metal materials such as low carbon steel, stainless steel, aluminum alloy, cold galvanized sheet, iron, etc., to meet the welding needs of different industries and workpieces;

After sales improvement: professional after-sales technical support, 24-hour response.

5、After sales service

Warranty service: The whole machine is guaranteed for 1 year, and during the warranty period, it will be repaired and replaced with parts free of charge for non-human factors;

Technical support: Provide free technical support, including operation training, parameter optimization, process guidance, etc., and customize welding plans according to user needs;

Accessory supply: The original accessories are sufficient, and during the warranty period, they will be replaced free of charge without human damage. After the warranty period, they will be supplied at cost price to ensure the normal operation of the equipment;

The 1000W pulse laser spot welding machine takes "precision, efficiency, energy saving, and convenience" as its core, breaking the limitations of traditional spot welding equipment and providing cost-effective precision welding solutions for small and medium-sized enterprises, helping them achieve dual improvement in production efficiency and product quality.
