600w pulse spot welder

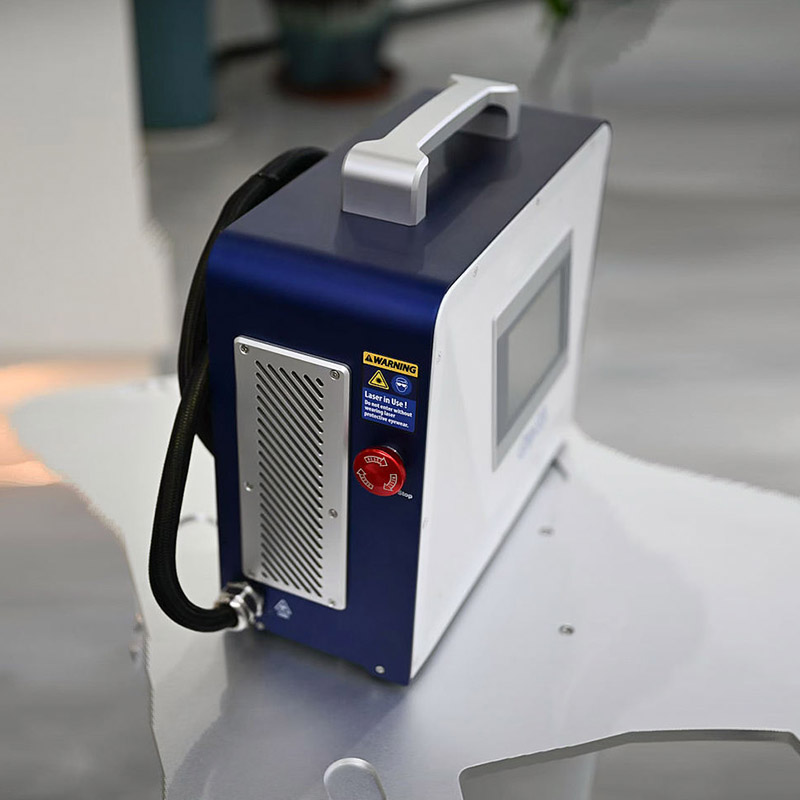

Product Introduction of 600W Pulse Laser Spot Welding Machine

The 600W pulse laser spot welding machine is an efficient, stable, and energy-saving laser welding equipment designed specifically for small and medium power precision welding scenarios. It adopts QCW pulse fiber laser technology and, with precise energy control and flexible operation modes, is widely applicable to precision spot welding needs in multiple industries such as electronics, hardware, automotive parts, medical equipment, jewelry, etc. It balances welding quality and production efficiency and is the core equipment for small and medium-sized enterprises to achieve automation and precision welding upgrades.

1、Core advantages of the product

1.1 Precise control and excellent welding quality

The 600W portable spot welding machine adopts a QCW pulse fiber laser source, with adjustable pulse width/frequency, peak power of 600W, average power of 300W, and energy output stability of ≤± 2%. It can accurately control the size and depth of the solder joint, avoiding problems such as virtual soldering, solder leakage, and solder through. The diameter of the welding point can be flexibly adjusted between 0.1-1.5mm, and the welding scar is flat and smooth, without the need for subsequent polishing treatment, greatly improving the appearance texture and welding strength of the product, meeting the strict welding requirements of precision components.

1.2 Efficient and energy-saving, with extremely low operation and maintenance costs

Compared to traditional arc welding machines, it saves more than 60% energy and can significantly reduce electricity costs if used for a long time. Adopting modular design, the core components have a service life of up to 100000 hours; Further reduce energy consumption and lower enterprise operation and maintenance costs.

1.3 Flexible adaptation, diverse job scenarios

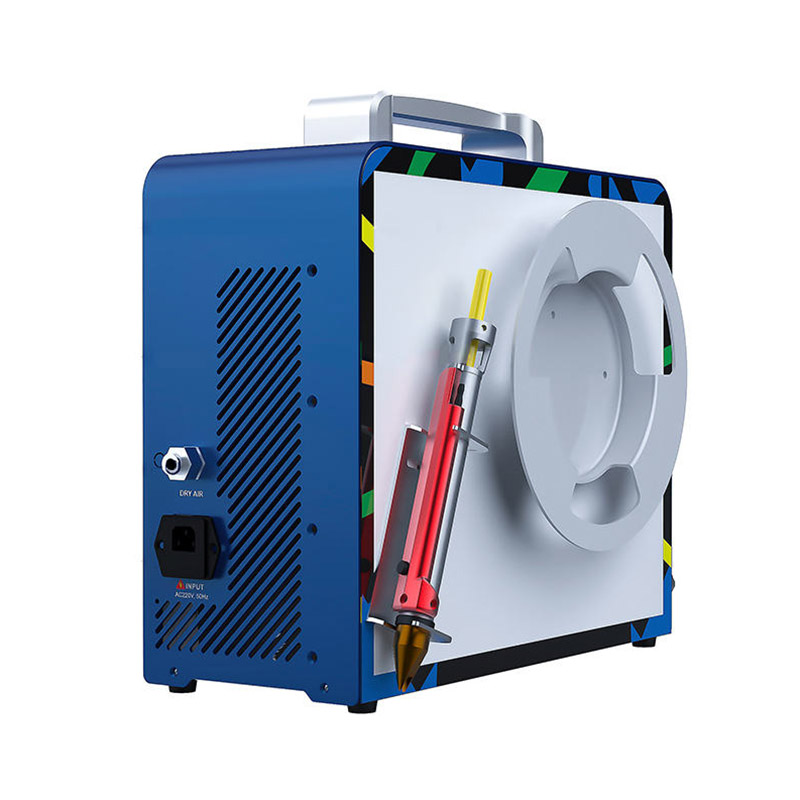

Compact and flexible in size, it can be flexibly switched according to the shape and size of the workpiece. The handheld welding gun adopts a lightweight design, weighing only 300g, equipped with an ergonomic handle, and can be operated for a long time without fatigue. It is suitable for various working environments and greatly improves production efficiency.

1.4 Safe and stable, easy to operate and understand

The laser level is level 4, equipped with multiple safety protection devices such as laser protective glasses and emergency stop buttons to prevent safety accidents caused by laser leakage. Industrial grade touch screen, with a simple and intuitive operation interface. It can set commonly used process parameters, which can be directly called, and supports parameter customization and saving. Novices can easily operate it after simple training. The equipment runs stably with a low failure rate.

1.5 Environmentally friendly and pollution-free, in line with industry standards

The welding process has no open flames, no smoke, no noise, no harmful gas emissions, no need to add solder, avoids chemical pollution, meets environmental standards, and does not require additional dust removal and noise reduction equipment, creating a green and safe working environment.

2、Core technical parameters

Laser power: peak power 600W, average power 300W;

Laser wavelength: 1080 ± 5nm;

Fiber length: standard 2-3m;

Pulse width range: 1-50ms;

Welding thickness: 0.1-1.5mm (adjusted according to material);

Pulse frequency: adjustable from 1-300Hz;

Core diameter: 100 μ m;

Maximum single pulse energy: 6J/10ms;

Working environment temperature: -20 ℃~50 ℃, humidity ≤ 85%

Power supply requirements: single-phase 220V ± 10%, 50/60Hz

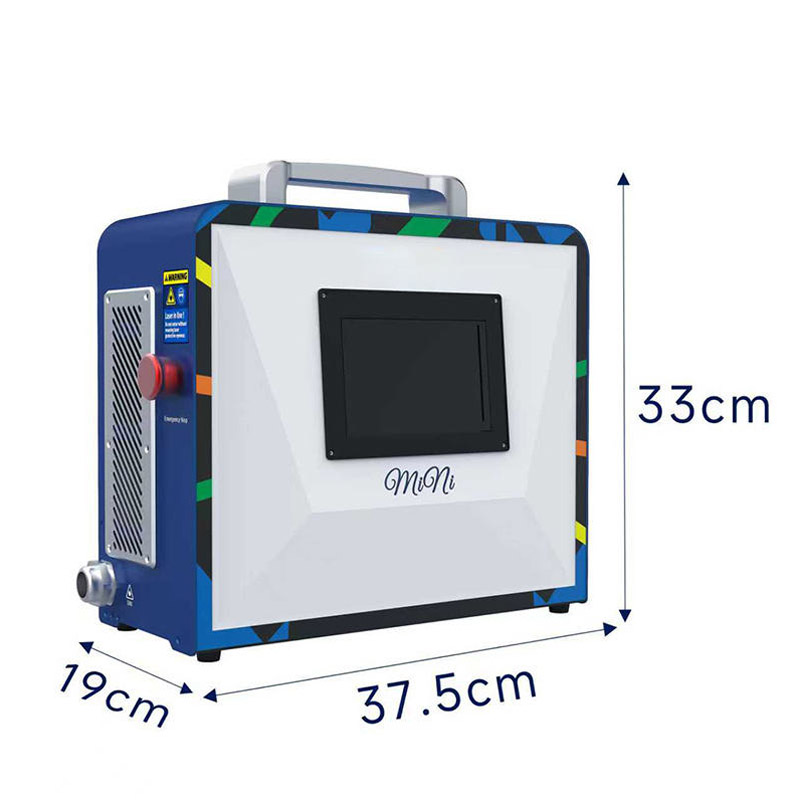

Equipment size: 380 × 195 × 340mm

Equipment weight: Net weight 11.5kg, gross weight 13kg;

3、Applicable industries

The 600W pulse laser welding machine is widely used in various industries such as thin plate welding, advertising word welding, lighting welding, electronics industry, hardware products, jewelry, precision instruments, and home appliance manufacturing.

4、Core competitiveness of products

1. Outstanding cost-effectiveness: 600W power is suitable for small and medium power precision welding needs, affordable price, while ensuring welding quality and stability;

2. Easy to operate: No need for professional welders, beginners can get started with simple training, customize process parameters, can be called with one click, greatly reducing the operating threshold;

3. Strong adaptability: supports multiple operation modes, can weld various metal materials such as carbon steel, stainless steel, aluminum alloy, iron, etc., to meet the welding needs of different industries and workpieces;

5、After sales service and support

Warranty service: Core components are covered by a 2-year warranty, and the entire machine is covered by a 1-year warranty. During the warranty period, there will be free maintenance and replacement of parts for non-human factors;

Technical support: Provide free technical support, including operation training, parameter optimization, process guidance, etc., and customize welding plans according to user needs;

Accessory supply: The original accessories are sufficient, and during the warranty period, they will be replaced free of charge without human damage. After the warranty period, they will be supplied at cost price to ensure the normal operation of the equipment;

The 600W pulse laser spot welding machine takes "precision, efficiency, energy saving, and convenience" as its core, breaking the limitations of traditional spot welding equipment and providing cost-effective precision welding solutions for small and medium-sized enterprises, helping them achieve dual improvement in production efficiency and product quality.
