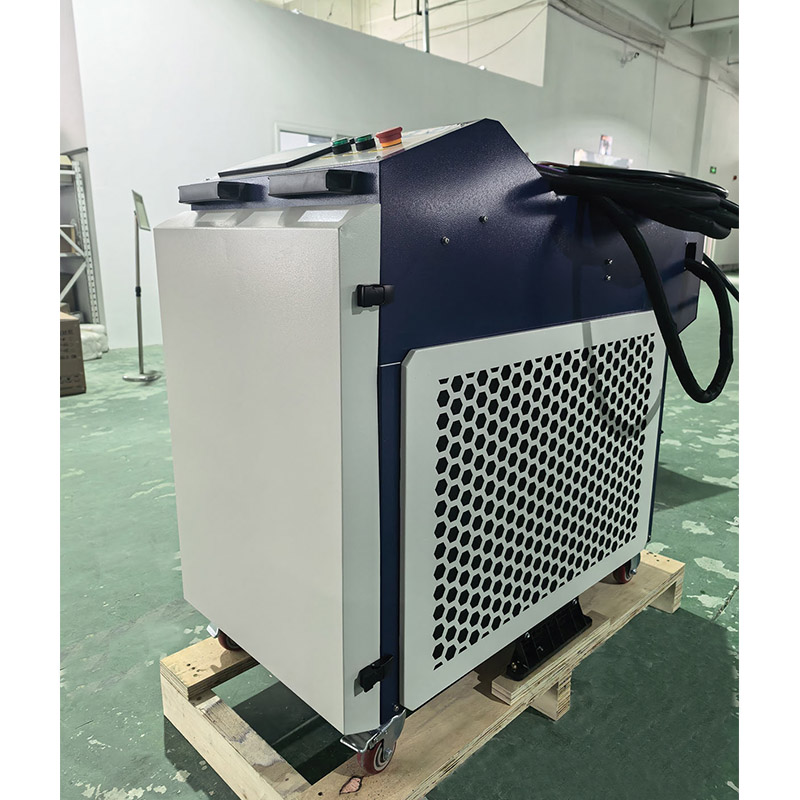

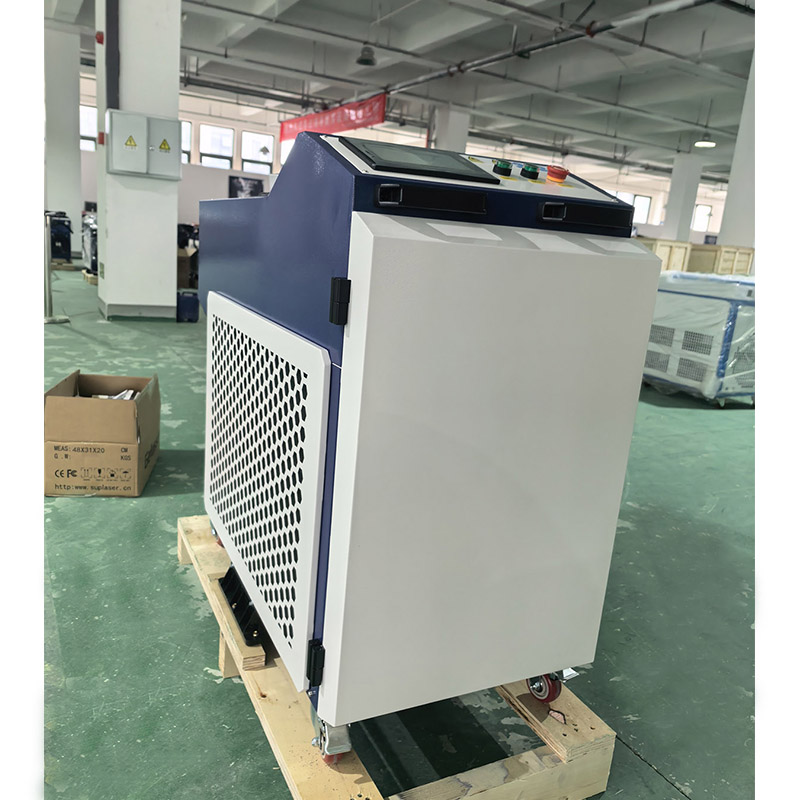

3000W laser cleaning/rust removal machine

3000W laser rust removal machine (laser cleaning machine)

1、Product positioning: heavy-duty high-efficiency rust removal benchmark

The water-cooled 3000W laser rust removal machine is a flagship surface treatment equipment specially designed for severe rust, large-area components, and high load production scenarios. It integrates 1070nm high-power fiber laser technology and dual cycle intelligent water cooling system, with the core advantage of "ultra-high energy density peeling+stable operation under heavy load", completely breaking through the efficiency bottleneck of low and medium power models in thick rust layers and large area treatment. The equipment focuses on heavy-duty fields such as ships, bridges, and heavy machinery, and combines the characteristics of "efficient rust removal" and "non-destructive protection of substrates". It is the core choice for enterprises to achieve large-scale rust removal and green production upgrading.

2、Core technical parameters (3000w fiber laser rust removal machine)

Laser power: 3000W, 10-100% adjustable; Suitable for medium/heavy/extremely heavy rust, doubling the efficiency of thick rust treatment.
Laser wavelength: 1070nm ± 20nm fiber laser, metal absorption rate ≥ 92%, more thorough gasification of thick rust layer and heavy oil pollution.

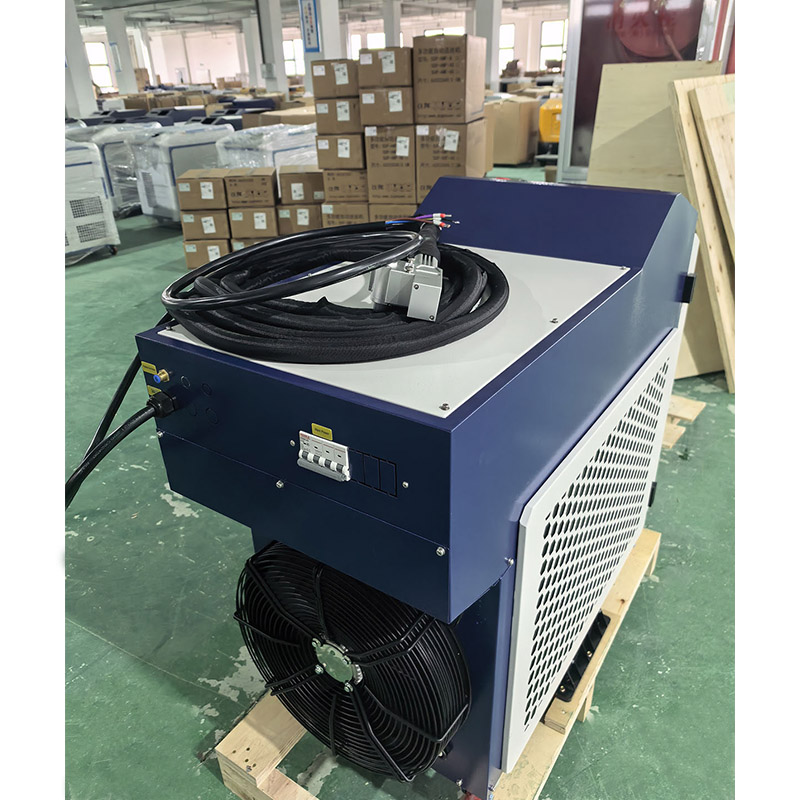

Heat dissipation method: Dual cycle intelligent closed-loop water cooling system, temperature control accuracy ± 1 ℃, supports 7 × 24-hour continuous heavy load without attenuation.
Rust removal efficiency: 50-60 ㎡/h for thin rust, 30 ㎡/h for moderate rust, and 15 ㎡/h for severe rust; the rust removal efficiency of a 3000 watt laser rust removal machine is 8-10 times that of traditional polishing processes and 1.6 times that of a 2000 watt laser rust removal machine.
Cleaning scope: rust layer, oxide scale, paint layer, heavy oil stains, welding slag, etc., one-stop solution for complex attachments in heavy-duty scenarios.
Work performance: Scanning speed of 10-2000mm/s, maximum cleaning width of 300mm, outstanding efficiency in wide format operations, suitable for processing medium and large components
Operating radius: Standard 10m fiber optic cable, optional 15m/20m customized extension; Remote operation without constraints, suitable for large working conditions such as ships and bridges.
Working distance: The optimal distance is about 60-75cm, which can flexibly handle large-sized and complex shaped workpieces.
Power supply requirements: three-phase 380V ± 5%, 50/60Hz [customizable], total power ≤ 15KW.
Equipment specifications: 1500 * 1010 * 1280mm, weight approximately 210kg.
Protection level: Working environment temperature of 10-45 ℃, humidity<75%, no condensation.
Safety configuration: Laser level 4 protection, multiple alarms, emergency stop device, in compliance with international industrial safety standards, ensuring the safety of heavy-duty operations.

3、Seven core advantages (3000w laser cleaning machine)

3.1 Ultra high energy efficiency, rust removal in seconds
The energy density of the 3000W high-power laser focusing machine has increased by 50% compared to the 2000W laser cleaning machine. It can instantly vaporize thick rust layers, oxide layers, oil stains, coatings, etc. Combined with high-speed scanning, it only requires one scan to handle severe rust, making rust removal easy. The efficiency has increased by 60% compared to the 2000W laser cleaning machine, greatly shortening the construction period of large-scale projects.
3.2 Dual cycle water cooling, stable under heavy loads like a rock
Upgrade the dual cycle intelligent closed-loop water cooling system, with a 40% increase in heat dissipation efficiency compared to single cycle. Accurately control the temperature fluctuation of the laser module to ≤± 1 ℃, avoiding overheating attenuation during high-power operation. The stability of the 3000W laser rust removal machine far exceeds that of similar models in continuous operation scenarios such as ship dock repair and bridge maintenance.
3.3 Non destructive and precise, with zero damage to the substrate
Continuing the core technology of "selective absorption", the laser only acts on the pollutant layer, and the surface roughness Ra of the substrate is ≤ 1.2 μ m, without scratches, deformation, or material strength loss. For scenarios such as heavy machinery components and large molds, there is no need for secondary processing after processing, and it can be directly adapted to subsequent spraying and welding processes.
3.4 Green compliance, zero pollution and zero emissions
There are no chemical agents, no dust splashes, and no wastewater generated throughout the process. Only a small amount of recyclable rust powder is produced, which complies with ISO14001 environmental standards and strict industrial environmental policies. Compared to traditional pickling processes, it can reduce chemical pollutant emissions by 20-30 tons per year, making it environmentally friendly.
3.5 Overload adaptation, full scene rust removal

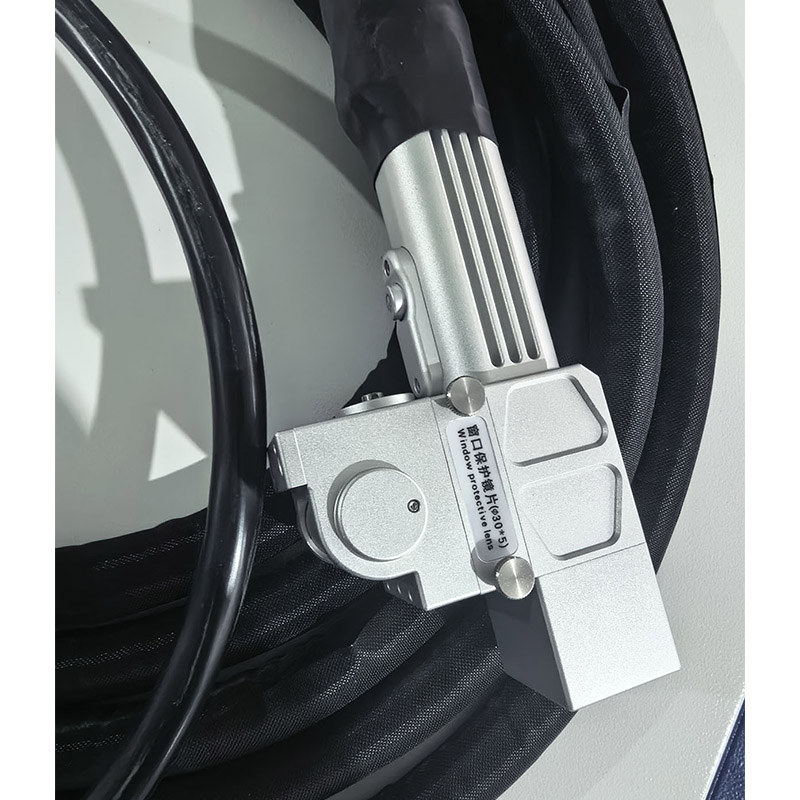

Flexible operation: Lightweight handheld laser gun, capable of penetrating complex structures such as threads, grooves, welds, etc. of large components;
Widely applicable: supporting various metals such as carbon steel, stainless steel, aluminum alloy, copper alloy, etc., it can be used for pre welding treatment, post welding slag cleaning, equipment refurbishment, maintenance of large components and other multiple processes;
Strong scalability: It can be manually operated, automated with robots, or equipped with mobile platforms, suitable for ultra large workpieces such as ship hulls, bridge steel structures, and giant machinery.
3.6 Intelligent upgrade, more convenient operation

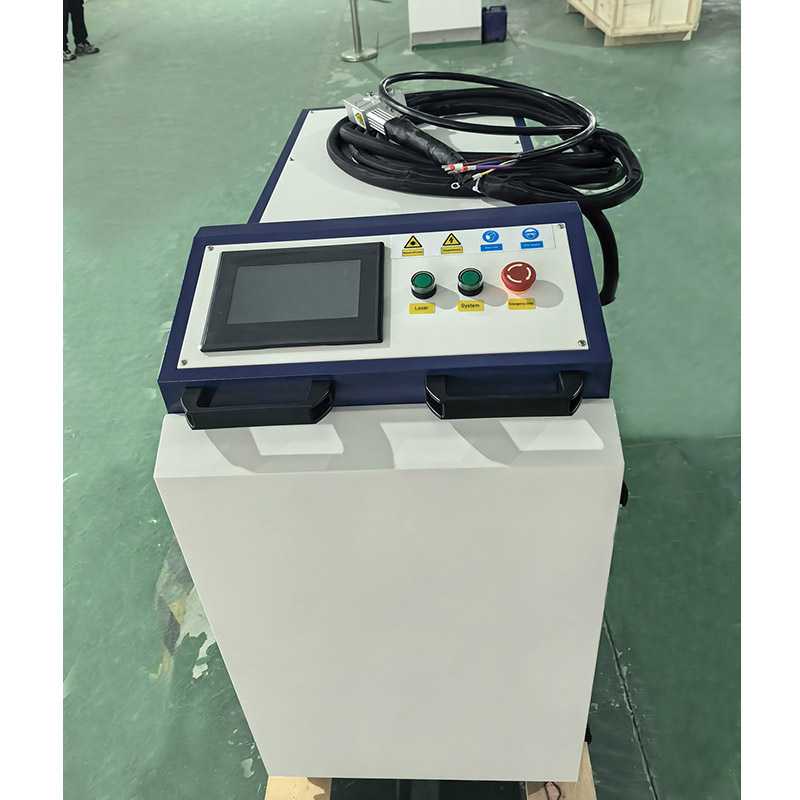

Equipped with an intelligent touch screen, supporting parameter storage and one click calling, beginners can work independently after 1 hour of training.
3.7 Long term low consumption, better overall cost
No consumables such as sandpaper, grinding wheels, chemical agents, etc., only regular cleaning of optical lenses is required, with low single maintenance costs. The photoelectric conversion efficiency is high, and the energy consumption per square meter of processing is only 1/4 of traditional sandblasting technology. The comprehensive cost of long-term use is reduced by 15% compared to the 2000W laser rust removal machine, and reduced by 50% -70% compared to traditional technology.

4、Core applicable scenarios (3000w laser rust removal machine)

4.1 Marine industry: The removal of thick rust on ship hulls, decks, offshore platforms, and port machinery significantly shortens the dock repair cycle;
4.2 Bridge infrastructure industry: corrosion maintenance of steel structure bridges, iron towers, wind power towers, and large scaffolding, suitable for long-distance operations, with a processing efficiency 60% higher than that of a 2000W laser rust removal machine;
4.3 Heavy Machinery Industry: Complete machine rust refurbishment and precision component rust removal of heavy machinery such as excavators, cranes, and machine tools to ensure subsequent assembly accuracy and service life;
4.4 Mechanical manufacturing industry: Pre welding treatment and post welding slag removal for large molds, mechanical components, and welded parts, improving welding strength by 20% and reducing welding defects;
4.5 Hardware Processing Industry: Surface rust removal and multi-layer coating peeling of large hardware components, stamping parts, and fasteners to improve the quality and efficiency of spraying and electroplating processes;
4.6 Automotive Manufacturing and Maintenance: Rust and refurbishment of heavy-duty truck chassis, engine cylinder blocks, and car frames, suitable for large-scale and high-efficiency processing needs;
4.7 Other Heavy Duty Scenarios: Surface Cleaning and Maintenance of Power Equipment, Chemical Pipelines, Aerospace Large Components, and Large Metal Components.

5、Quality assurance and value-added services

We offer a one-year warranty for the entire machine and free online remote technical support. Our professional after-sales team responds 24 hours a day, provides free online operation training, regularly follows up on equipment usage, and promptly solves any problems encountered by users during use. At the same time, we provide vulnerable parts supply to ensure that users have no worries.

We provide pulse laser cleaning machines with different powers such as 100W/200W/300W/500W/1000W, as well as water-cooled handheld fiber laser rust removal machines with different laser powers such as 1500W/2000W/3000W/6000W. If you happen to need laser cleaning/rust removal machine equipment, you can contact us for the latest product factory prices. We look forward to sincere cooperation with you.
